Strands - NIGHT GUARD 22" DR

Strands - NIGHT GUARD 22" DR

with approval as driving lamp according to ECE R112 and supplementary ECE R10

Product number: 208-809217

Description

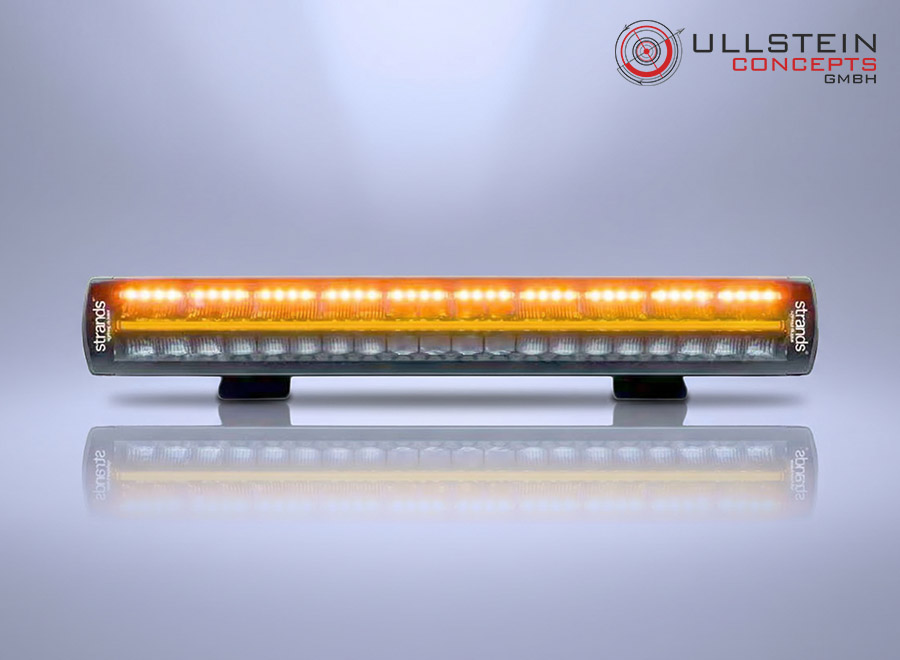

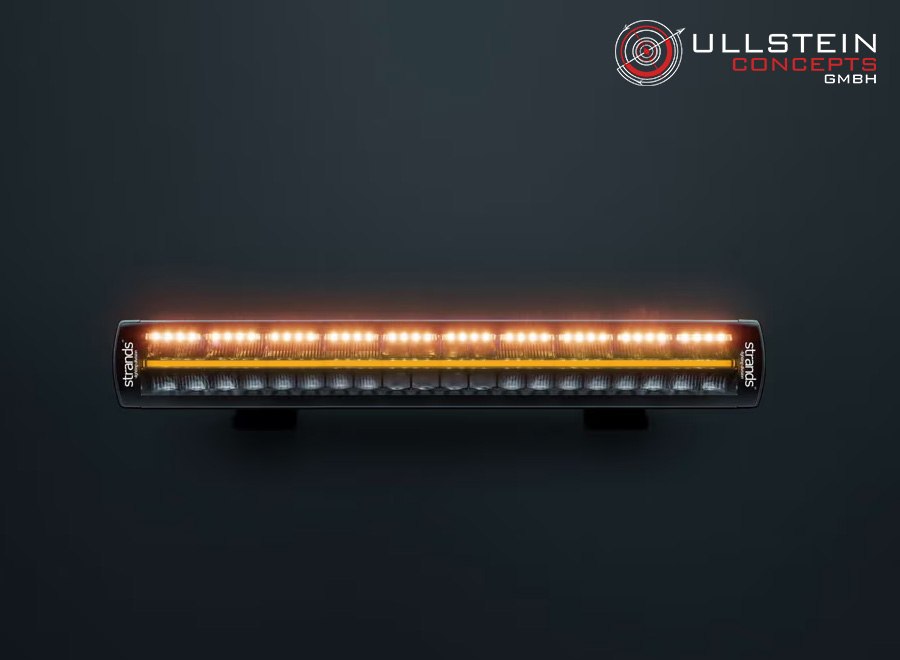

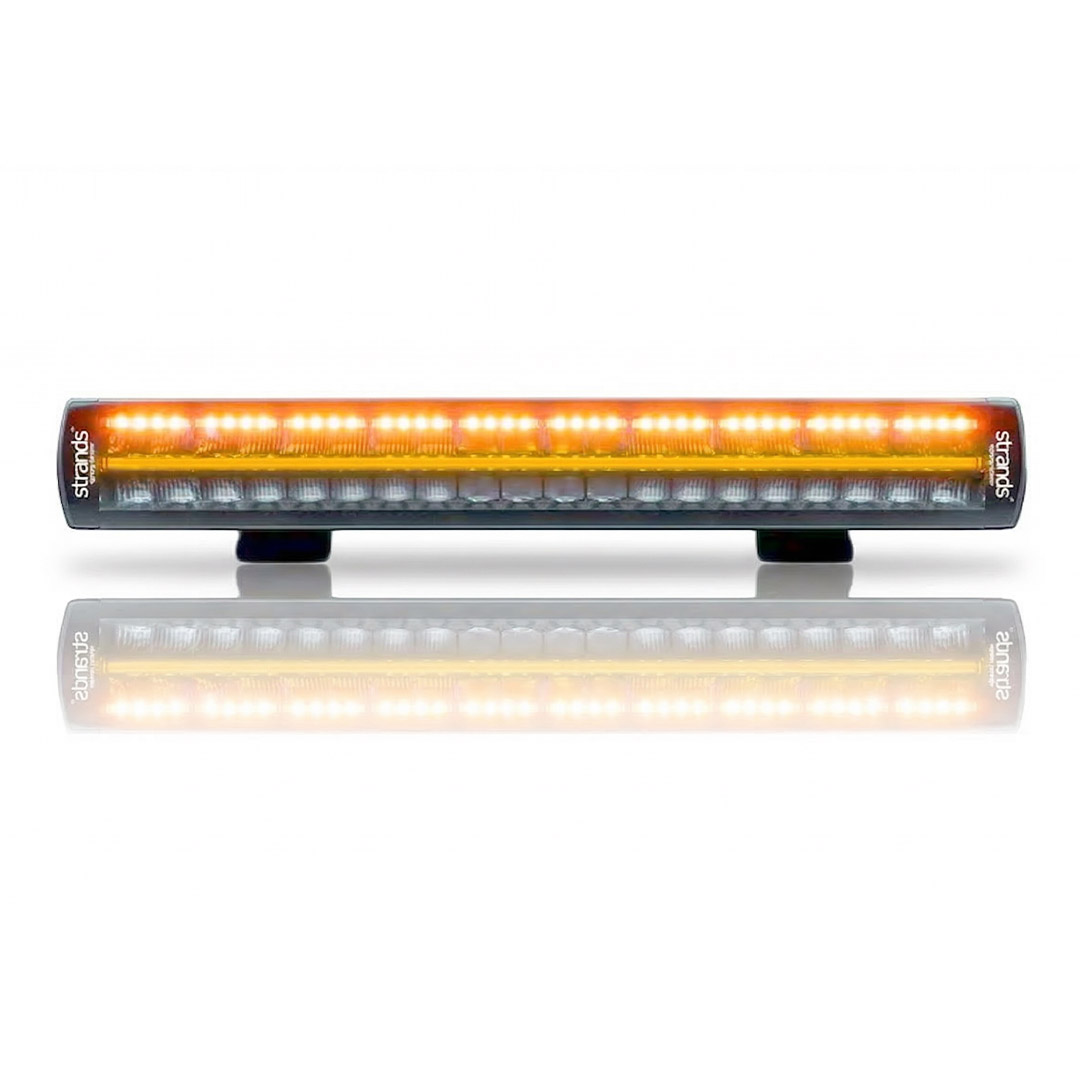

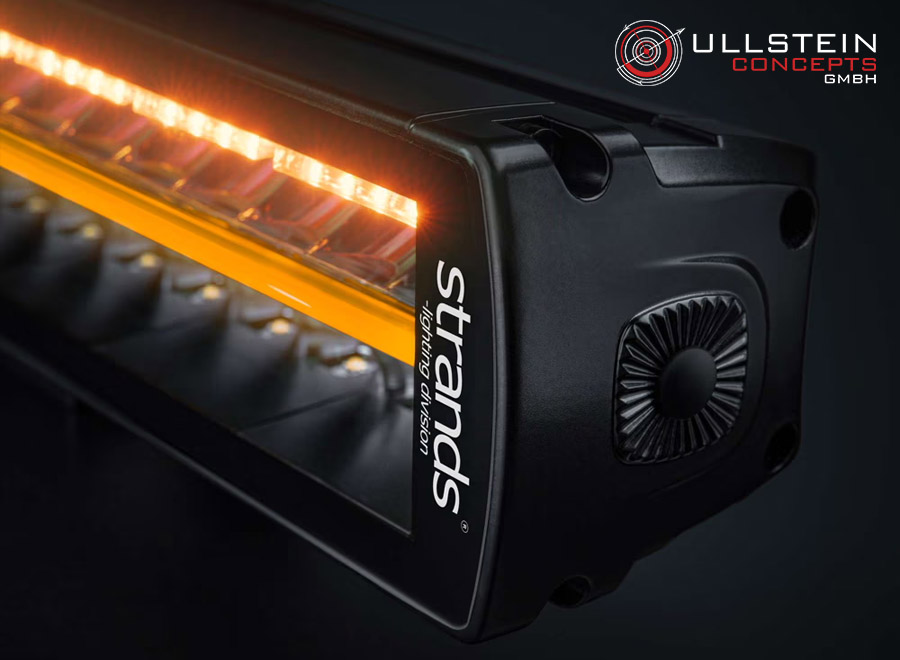

Siberia Night Guard is a multifunctional 3in1 LED lamp with an extremely powerful warning light that also provides an unbeatable high beam as well as position light.



High beam: Bright high beam with E-approval.

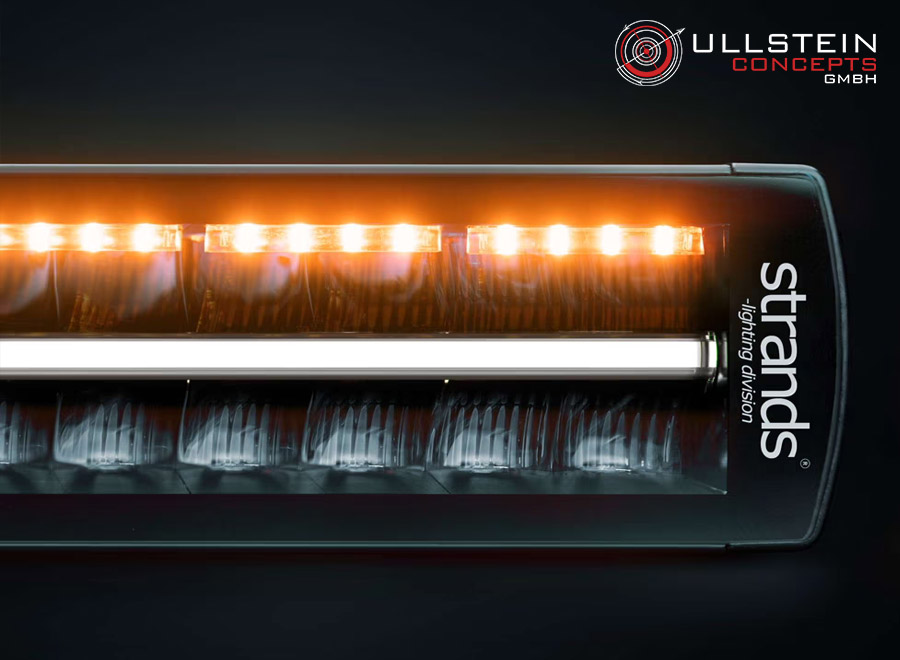

Dual position light: The characteristic Siberia position light is located in the centre part of the Light Bar and can be set in amber or white light colour as desired.

Warning light: The LEDs in yellow colour, positioned in the upper part of the Light-Bar, serve as a powerful warning light.



Technical details:

Type of lamp LED
Type of LED Osram
PCS LED´s 40
Voltage (V DC) 9-35V DC
Theoretical effect (w) 12V 200
Theoretical effect (w) 24V 200
Consumption (w) 12V 92.4
Consumption (w) 24V 92.4
Functions High beam. dual position light. warning light
Theoretical lumen 16000
Actual lumen 5911
1 LUX @ m 432
Kelvin 6000
IP-class 67/69K
Colour housing Black
Colour lens Clear
Colour LED´s White and Amber
Beam pattern Combo
Position light Yes. amber and white
Connection Cable
Cable length (mm) 2500

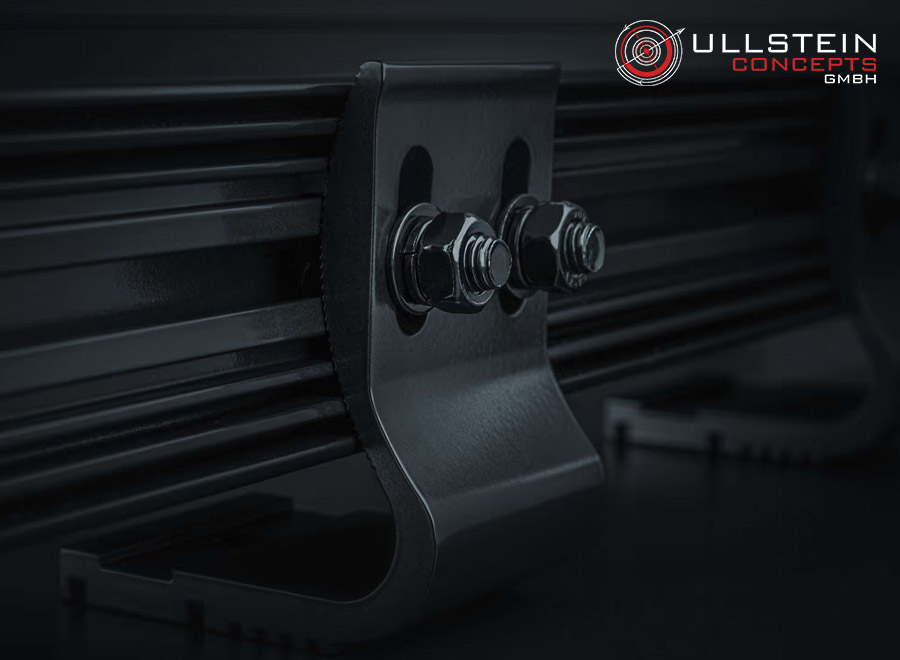

Material bracket Stainless steel
Material housing/chassi Aluminium
Material lens Polycarbonate
Length (mm) 562
Depth (mm) 71.6
Height (mm) 76
Height including bracket (mm) 89
Operating temperature -30°C – +65°C
ADR-approved No
E-approved Yes
According to regulation ECE R112. R7.R65
Reference number 45
EMC ECE R10

ATTENTION: Please note that in addition to the actual ECE approval, the installation rules for the specific vehicle must also be observed, which are primarily defined by ECE R48 and the German Road Traffic Licensing Regulations (StVZO). We have summarised the most important rules for you in this PDF.
