Strands - SIBERIA XPA SR LED BAR 22"

Strands - SIBERIA XPA SR LED BAR 22″

Driving Light 1875lm / 7150lm | LED Light Bar E-Approved

Product number: 208-809412A
shipping
in stock
in stock

Description

Siberia XPA Amber Edition Single Row 22-inch LED Lightbar - Additional LED driving lamp with E-approval ECE R148 (R7) R149 (R112) for use on public roads

The 22-inch auxiliary driving light is a single row LED light bar with 1,875 active (measured) lumens in E mode and an impressive 7,150 active lumens in Xperience mode. This results in a 65% higher output compared to the previous model.

Equipped with Duo mode, the Siberia XPA Light Bar has an E mode for operation on public roads with reduced brightness. For unrestricted power, e.g. for off-road use, simply switch to Xperience mode and the light bar turns night into day!

With the E-mode spotlight adapted for road conditions, the 32-inch light bar achieves a visibility range of 300 metres with 1,875 active lumens.

The non-throttled Xperience mode delivers the maximum available light output from the LED light bar with 7,150 active lumens, generating an impressive visibility range of 602 metres.

The installation is easy thanks to the DT-4 connector and 550 mm cable, saving you the hassle of connecting cables.

All Siberia XPA light bars come with a amber and white position light featuring a new Hello function. The Hello function, allows you to use the position lights as a light signal, e.g. to greet your friends on the road or to draw attention to your vehicle. Simply tap the high beam twice briefly and the Hello function is activated.

Tough material, IP68/IP69K rating and a new type of powder coating originally developed for oil rigs make the Strands LED driving light a long-lasting upgrade for any vehicle.

Siberia XPA Light Bars are covered by a 3-year functional warranty from Strands Lighting Division. Click here for warranty conditions.



PLEASE NOTE:

This LED driving lamp is E-approved in accordance with ECE R149 (R112) and R148 (R7) ;and may therefore be used as a driving light on public roads. In addition to the actual headlight approval, the installation rules on the vehicle must also be observed, which are primarily defined by ECE R48 and the German Road Traffic Licensing Regulations (StVZO). We have summarised the most important rules for you in this PDF.



TECHNICAL DETAILS:

Type of lamp LED
PCS 1
Voltage 10-32V DC
Consumption Xperience mode: 102W / E-mode: 25W / White pos. light: 9,2W / Amber pos. light: 9,2W
Actual lumen E-mode: 300 Xperience: 602
1 Lux @ E-mode: 1875 Xperience: 7150
Kelvin 5700K
IP-Class 68/69K
Colour housing Black
Colour lens Clear
Colour LED´s White and amber

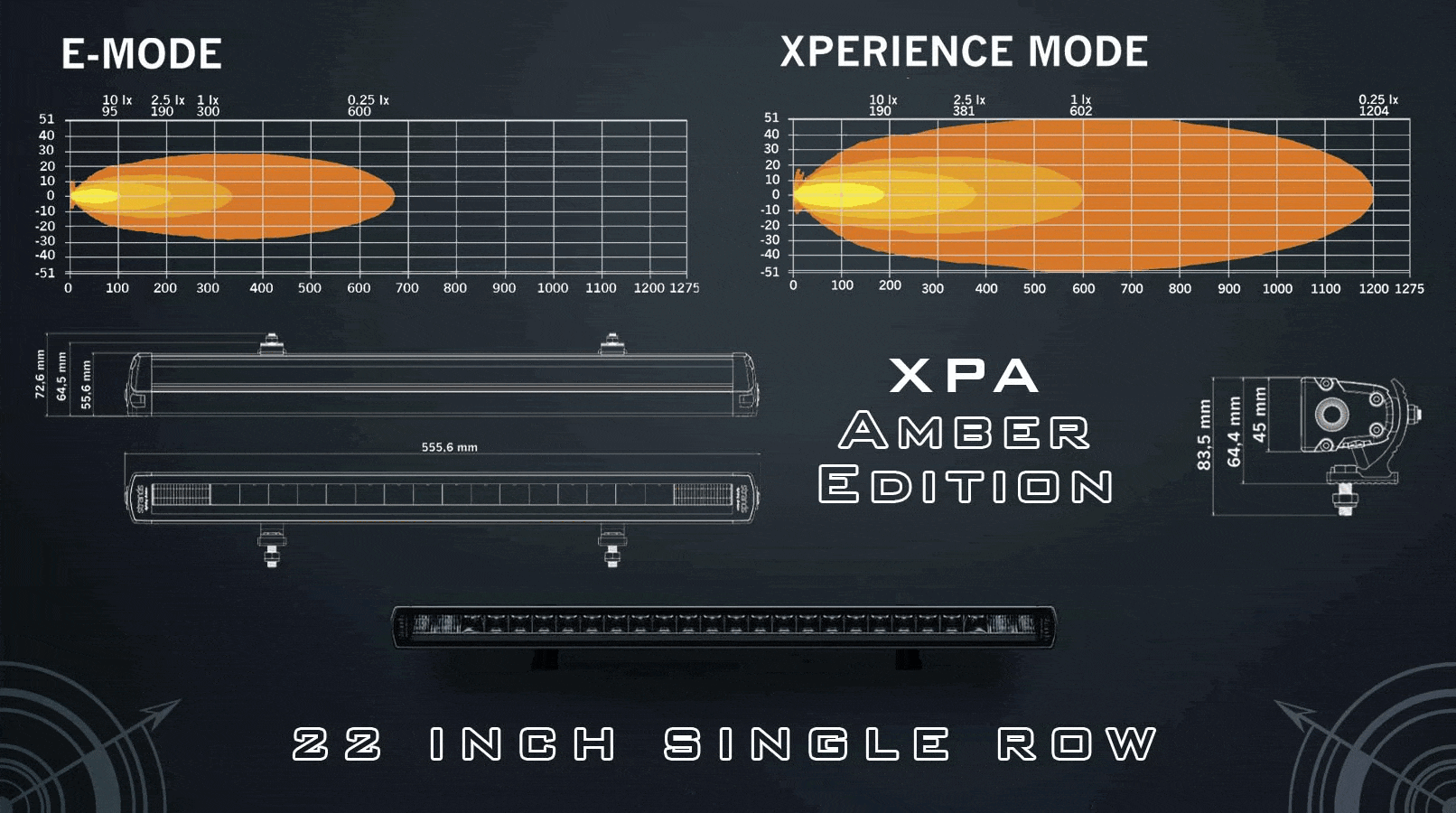

Beam pattern Extended Beam 14,4°
Position light Yes, white and amber
Integrated relay No
Cable length (mm) 550
Material bracket Aluminium
Material housing Aluminium
Material lens Polycarbonate
Length (mm) 555.6
Depth (mm) 55.5
Height (mm) 45
Height including bracket(mm) 64.5
Weight 1.8
Operating temperature -30°C - +65°C
E-approved Yes
According to regulation ECE R148 (R7) R149 (R112)
EMC ECE R10
Reference value (Ref.) 20
Strands Logo

Manufacturer

STRANDS Fordonskomponenter AB
Address:
Hagalundsvägen
51172 Fritsla
Schweden www.STRANDS.se
International identifier if deviating from SKU
809412A
