Strands - NIGHT GUARD Single Row 38 Zoll

Strands - NIGHT GUARD Single Row 38″

with approval as driving lamp according to ECE R112 and supplementary ECE R10

Product number: 208-809214

Description

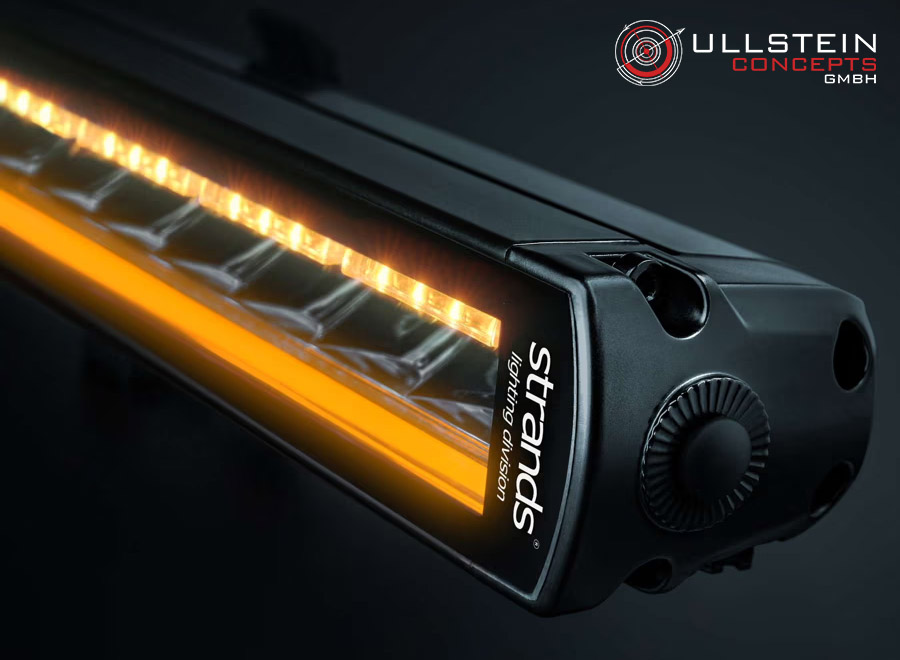

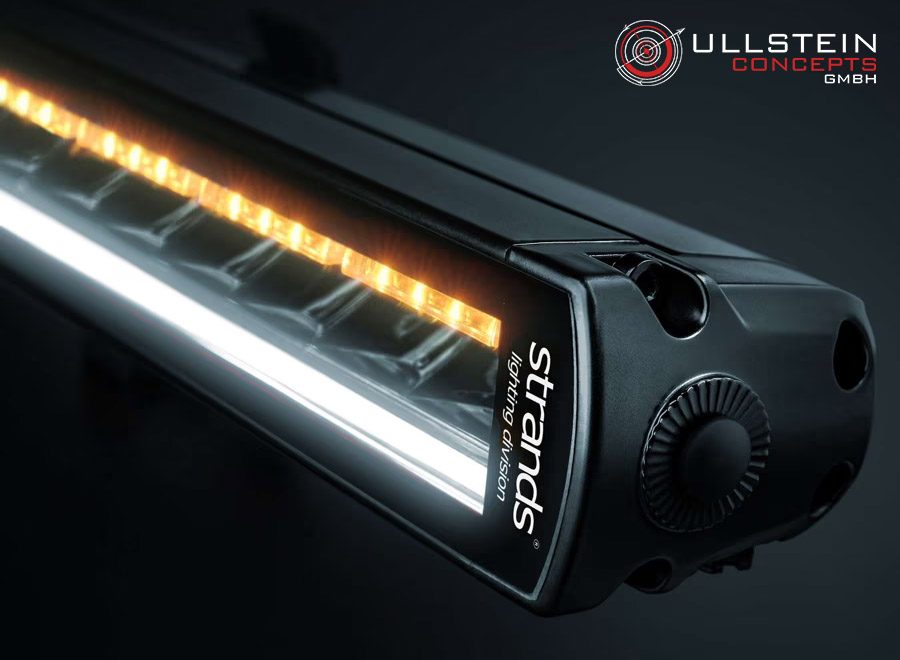

Siberia Night Guard is a multifunctional 3in1 LED lamp with an extremely powerful warning light that also provides an unbeatable high beam as well as position light.



High beam: Bright high beam with E-approval.

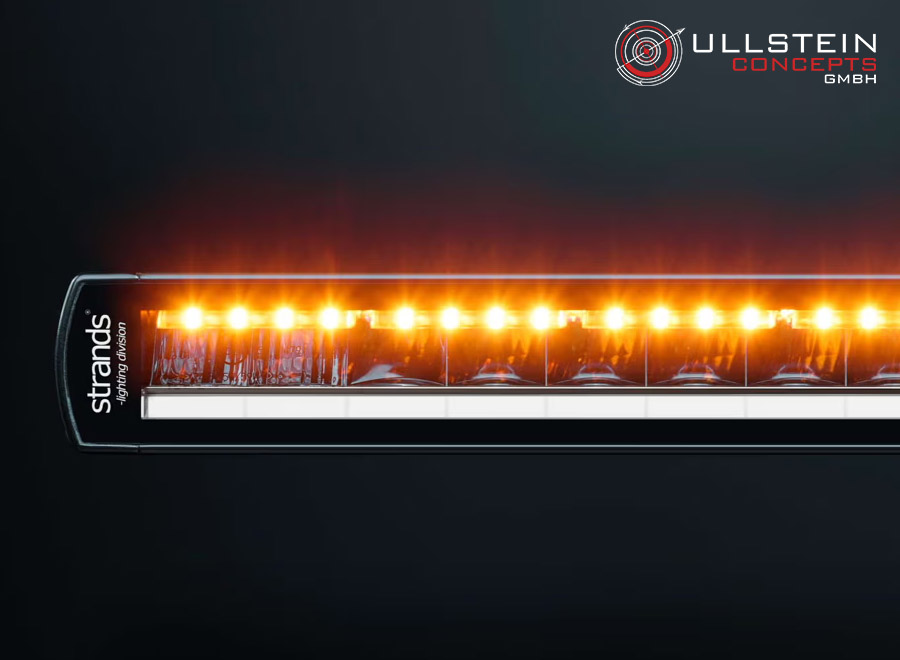

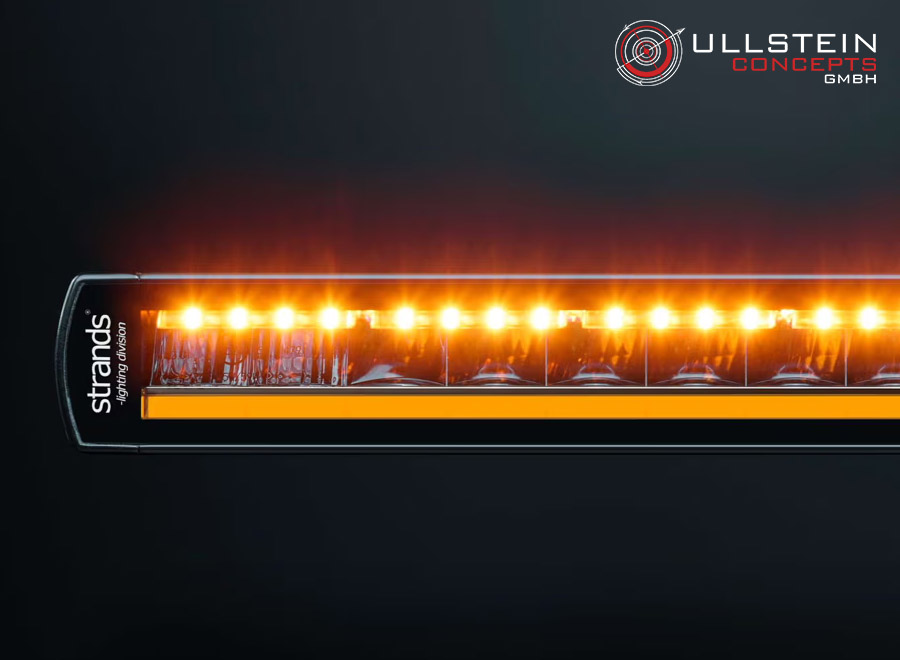

Dual position light: The characteristic Siberia position light is located in the centre part of the Light Bar and can be set in amber or white light colour as desired.

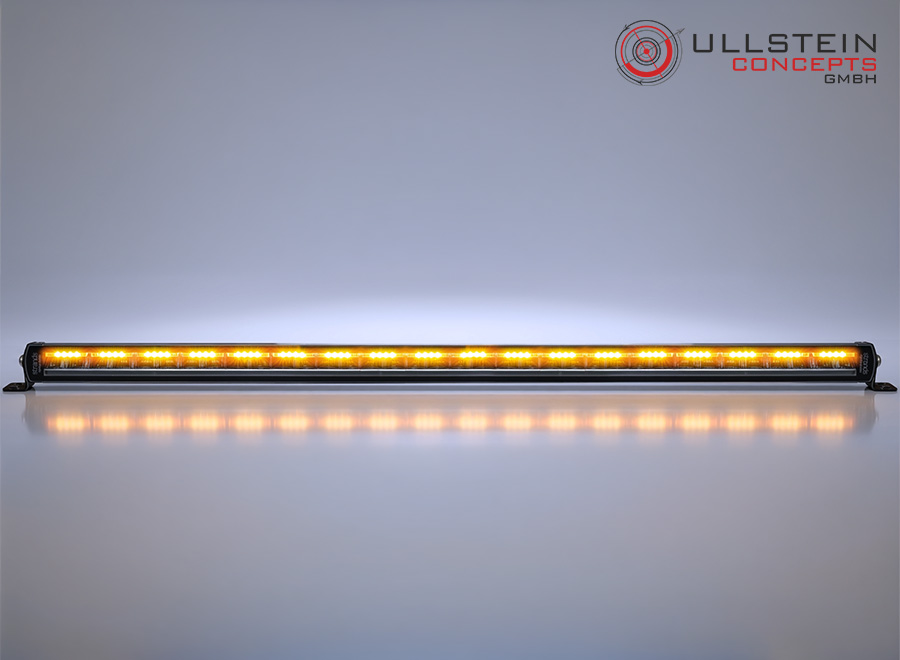

Warning light: The LEDs in yellow colour, positioned in the upper part of the Light-Bar, serve as a powerful warning light.



Technical details:

Type of lamp LED
Type of LED Osram
PCS LED´s 36
Voltage (V DC) 9-35V DC
Theoretical effect (w) 12V 180
Theoretical effect (w) 24V 180
Consumption (w) 12V 107.8
Consumption (w) 24V 107.8
Functions High beam. dual position light. warning light
Theoretical lumen 14400
Actual lumen 5867
1 LUX @ m 452
Kelvin 6000
IP-class 67/69K
Colour housing Black
Colour lens Clear
Colour LED´s White and Amber
Beam pattern Combo
Position light Yes. amber and white
Connection Cable
Cable length (mm) 2500

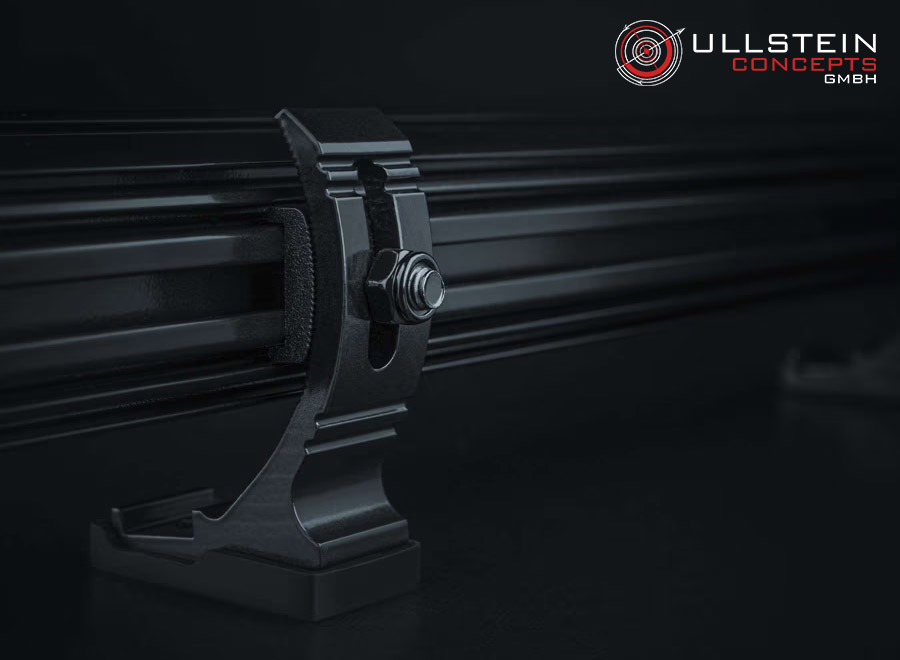

Material bracket Stainless steel
Material housing/chassi Aluminium
Material lens Polycarbonate
Length (mm) 963.6
Depth (mm) 55.5
Height (mm) 45
Height including bracket (mm) 65
Operating temperature -20°C – +45°C
ADR-approved No
E-approved Yes
According to regulation ECE R112. R7.R65
Reference number 45
EMC ECE R10



Approval as a high-beam driving lamp:
The following regulations must be observed when using the LED as a driving lamp:
- Maximum permissible light output: Reference numbers of all driving lights combined must not exceed 100
- Positioning In pairs and symmetrically
