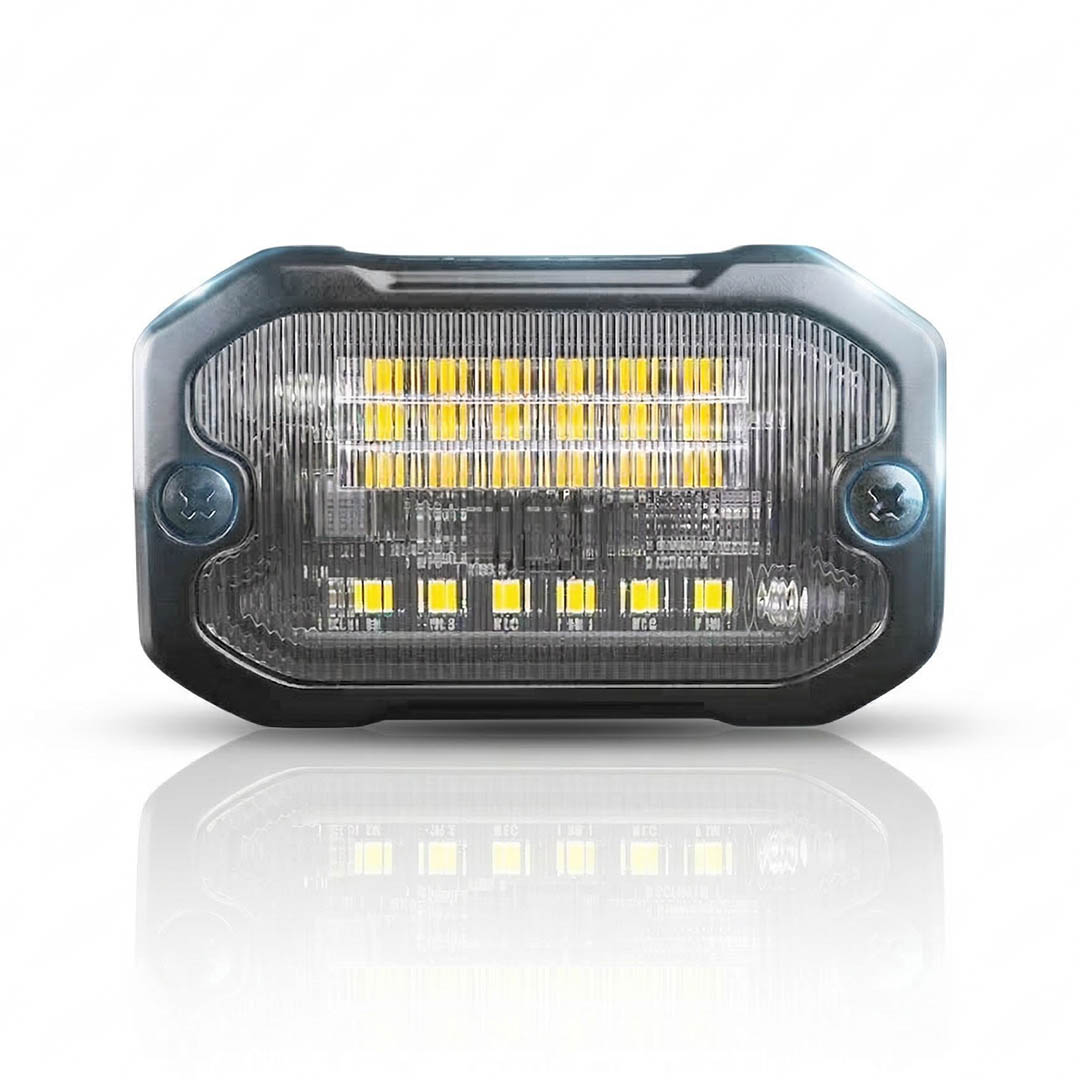

Strands - Unity Scene Light 9W

Strands - Unity Scene Light 9W

Scene light with reversing- and warning light

Product number: 208-809510
shipping
Delivery time: 14 workdays

Description

Strands Unity Scene Light 9W (809510): Scene light with reversing light (ECE R23) and strobe light (ECE R65) - 12V/24V

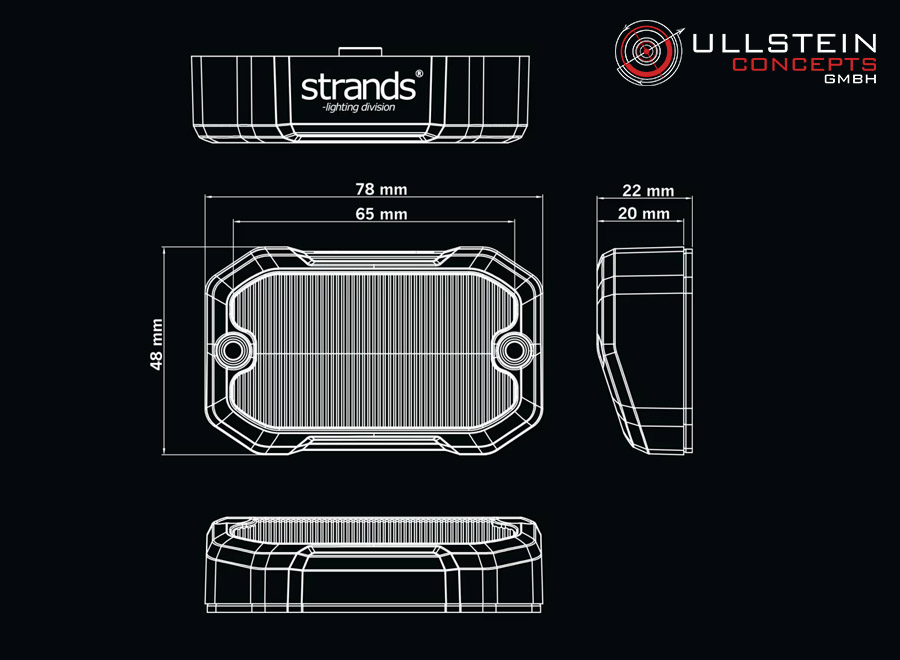

The Unity scene lighting optimally illuminates your work area with a range of over 14 meters. The compact dimensions (78 x 22 x 48 mm, 65 mm diameter) make the scene light a true space-saver.

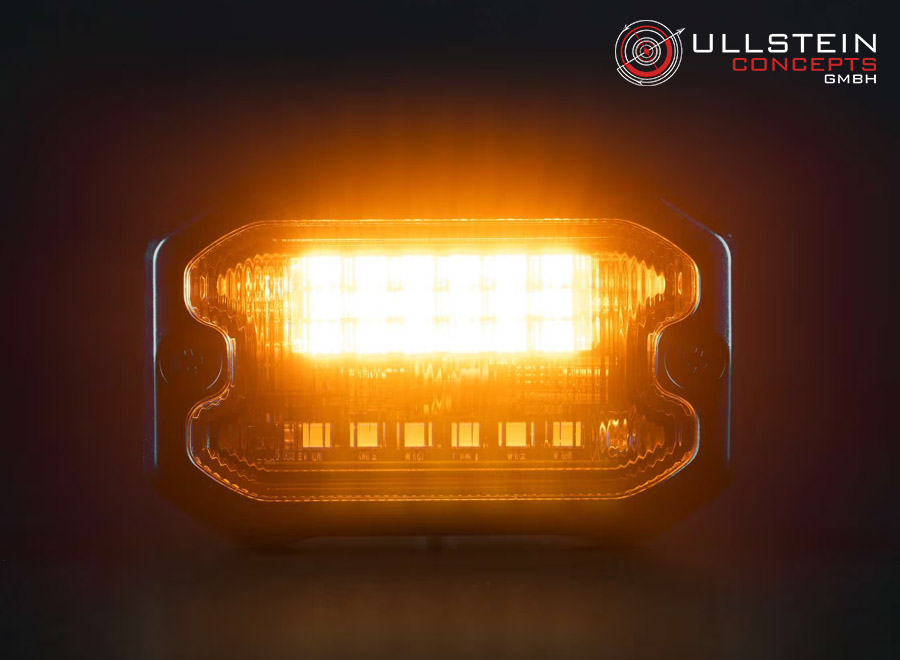

  • ECE approval for road traffic: E-approval as a reversing light (ECE R23) and warning light (ECE R65).

  • Strong performance: The 75° beam angle and 5700 Kelvin color temperature ensure daylight-like visibility when reversing. The wide light distribution is much stronger than standard reversing lights.

  • Ultra-compact: At just 78 x 22 x 48 mm, the scene light fits on any vehicle.

  • Extreme durability: Thanks to the robust construction, high-quality materials, and IP69K protection class, the light withstands even the harshest weather conditions.

  • Universal: The very low power consumption (4.5 W) and the multivolt function (10–32 V DC) allows for the installation of multiple lights on a single vehicle.



TECHNICAL DETAILS:

Type of lamp LED
PCS 1
Voltage 10-32V DC
Consumption (W) 8,5
Consumption specific function (W) Scene light: 4,5W Warning light: 4W
Theoretical lumen 880
Actual lumen 470

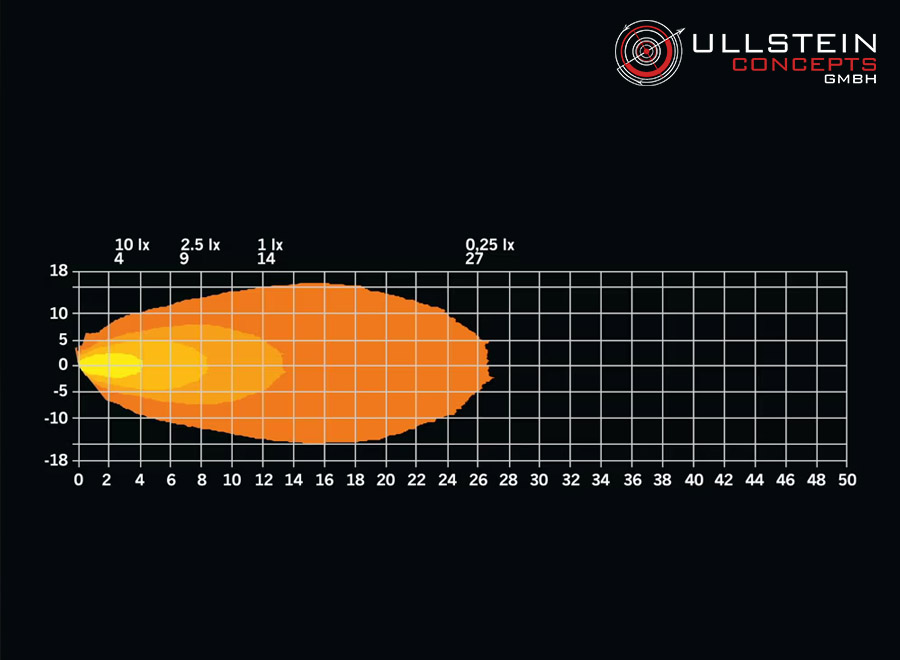

1 Lux @ 14
Color temperature 5700K
Material housing Aluminium
Colour housing Black
Colour lens Clear
Colour LED´s White and amber
Beam angle 143,7°
Scene light beam angle 75°
Beam pattern Flood Beam
Cable length (mm) 500
Material housing Aluminium
Material lens Polycarbonate
Length (mm) 78
Depth (mm) 22
Height (mm) 48
CC (mm) 65
Weight 0.144kg
Operating temperature -30°C - +65°C
IP-Class 68/69K
E-approved Yes
According to regulation ECE R23, ECE R65
EMC ECE R10
Strands Logo

Manufacturer

STRANDS Fordonskomponenter AB
Address:
Hagalundsvägen
51172 Fritsla
Schweden www.STRANDS.se
International identifier if deviating from SKU
809510
