Strands - Light Bar Siberia Outlaw UDX 8″ - LED High Beam with E-Mark and Work Light Funktion - 2788lm / 5758lm

Strands - SIBERIA OUTLAW UDX 8″

LED Work Light 7167lm | Flood-Beam | LED Light Bar Offroad

Product number: 208-809161

Description

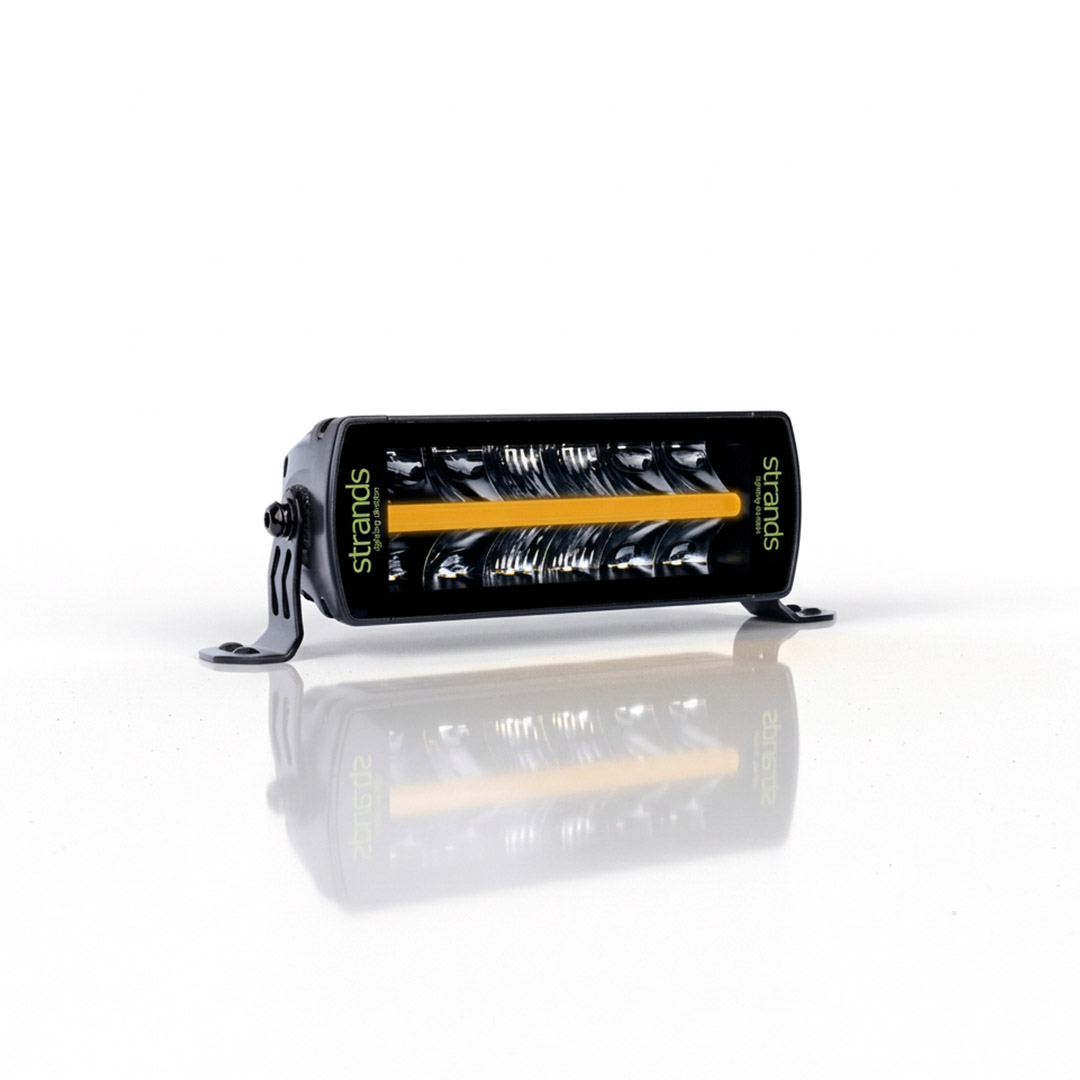

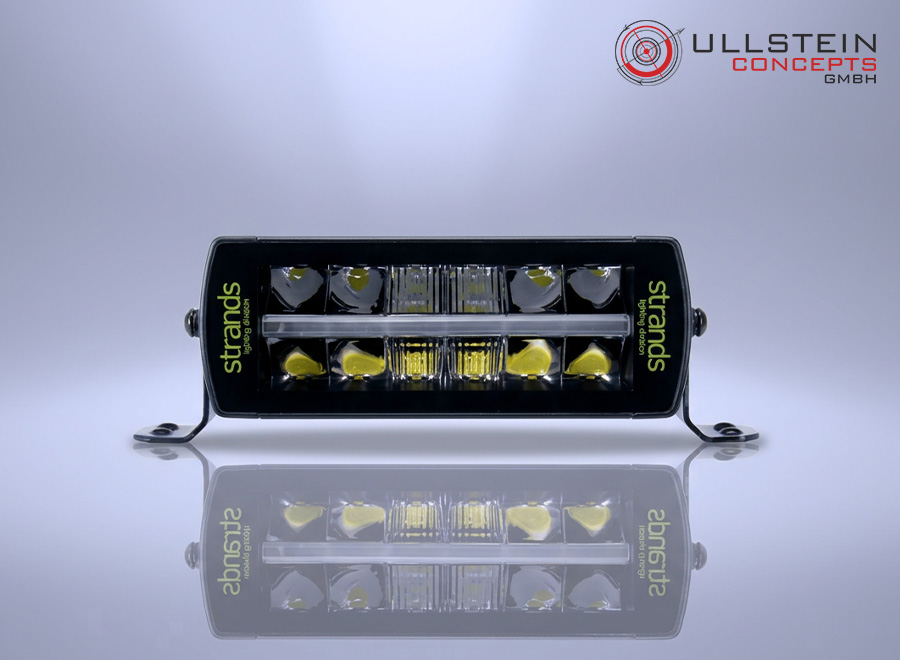

The Strands Siberia Outlaw UDX 8" Double Row LED Lightbar pushes boundaries!

The UDX edition of the popular Strands Outlaw worklight allows you to switch between two modes, the Xperience worklight mode and the E- mode with ECE R148 R149 road approval.

Xperience mode is activated switchless by pressing the flashing light three times two seconds after switching on the lightbar. To switch back to road legal mode, simply restart the vehicle and repeat the process. This is for safety and prevents the switch from being made accidentally.

In Xperience mode, the Outlaw UDX 8" achieves an enormous illumination of 5758 measured lumens. The E-approved mode delivers a high beam optimised for road conditions with 2788 measured lumens.

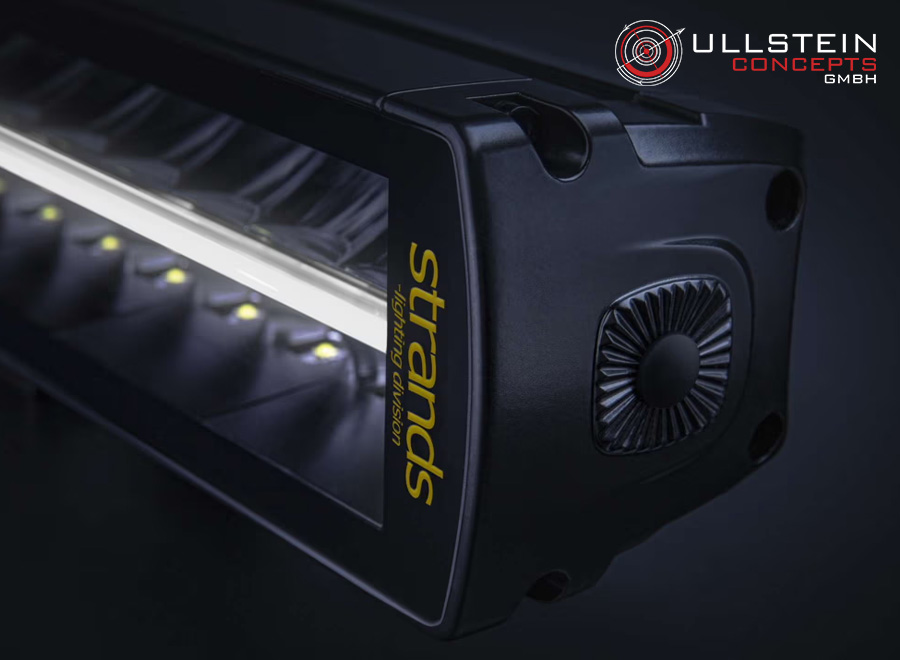

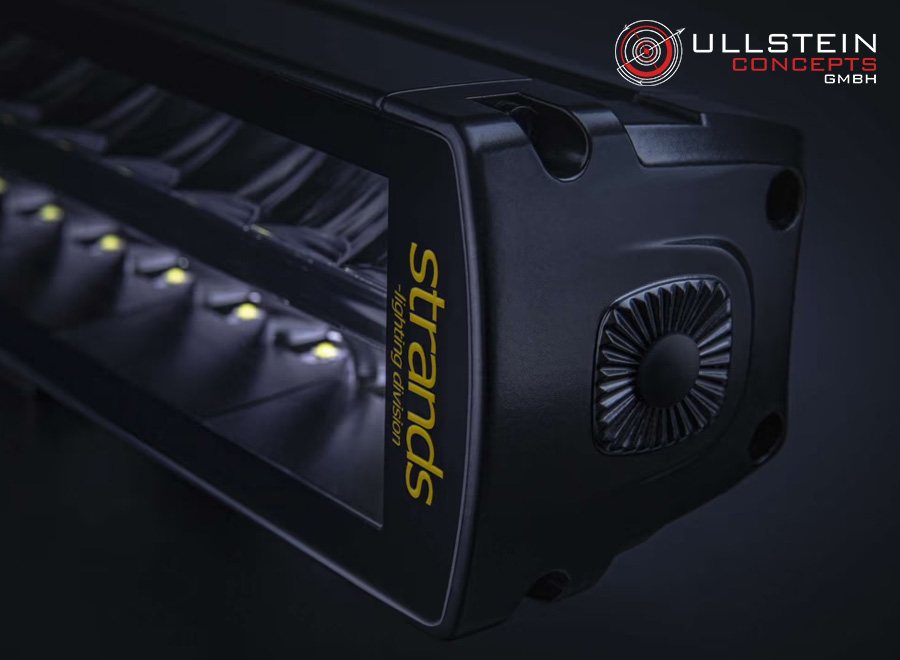

The aluminium housing is made from high quality components with precision technology and comes with an anti-UV coating. With the yellow Siberia Outlaw logo and the typical Siberia design with frameless lens and characteristic position light, the Outlaw UDX Lightbar also stands out visually from the crowd.

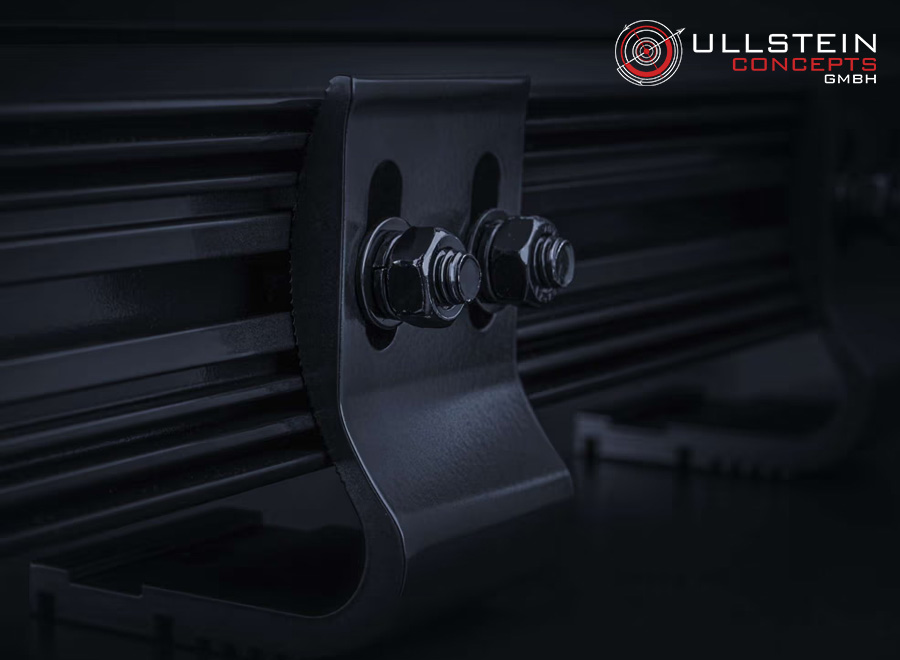

The Siberia Outlaw 8 Inch mounts with the supplied brackets, side or rear as required, but can also be mounted with clamp brackets (sold separately).


ATTENTION: Please note that in addition to the actual ECE approval, the installation rules for the specific vehicle must also be observed, which are primarily defined by ECE R48 and the German Road Traffic Licensing Regulations (StVZO). We have summarised the most important rules for you in this PDF.


Technical Details:

Voltage: 10-32 V DC
Theoretical Effect: 12V E-approved Mode: 31,7 W Xperience-Mode: 66,3 W
Theoretical Effect: 24V E-approved Mode 31,7 W Xperience-Mode: 66,3 W
Colour LED: 6500 K
Content: 1 Piece
Positionlight: Yes, orange and white
Material Housing: Aluminium
Material Lens reflector: Shatterproof polycarbonate
Material Mounting Brackets: stainless Steel
Technology: OSRAM P9 & CREE XPPED
Pcs LEDs: 12
Light angle: Combo
Light distance at 1lux: E-approved Mode: 327 m Xperience-Mode: 464 m
Theoretical Lumen: 7167 Lumen
Actual Lumen: E-approved Mode: 2788 Xperience-Mode: 5758 Lumen
Cable-length(mm): 500
Casing Shape: Bar
Casing Colour: Black
Operating Temperature: -30°C – +65°C
Length (mm): 205
Depth(mm): 71,6
Height(mm): 76
Height incl. Bracket(mm): 89
Protection class: IP67, IP69K
E-Protection: ECE R148 R149
Reference number: 25
ADR: No
EMV: ECE R10
