Strands - UNITY 10W

Strands - UNITY 10W

LED Reversing Light 1520lm | Flood-Beam

Product number: 208-809234
shipping
Delivery time: 14 workdays

Description

Strands Unity 10W (809234): LED Reversing Light with E-Mark and Infinity Design

Become a professional with the Unity series. Comes with a perfectly smooth look and a revolutionary strong light output. Extreme power made for demanding tasks.The Unity series contains seven models, from 10 W to 149 W, and deliver, depending on the size, from 931 to 13,000 actual lumens. The extensive engineering gives you an optimized light spread where you need it the most.

Unity comes in an infinity design. The lens stretches into the corners, providing a great look, resisting dirt, and allowing the light output to reach its full potential. The slim design perfectly matches today´s modern vehicles needing work lights like trucks, tractors, trailers, construction, or agricultural machinery.

When it comes to powerful lighting, they usually produce more heat, which means the lamp can break. The built-in temperature control prevents that, and the function protects the lamp and decreases the power until the light is cooled down. This function makes the Unity series one of the most durable products on the market.


TECHNICAL SPECIFICATIONS:

Contents: 1 piece
Technology: LED
Voltage range: 10-32V DC
Nominal power: 12 watts
Consumption: 10 watts
Raw LED lumen output (calculated): 1520 lm
Effective LED lumen output (measured): 931 lm

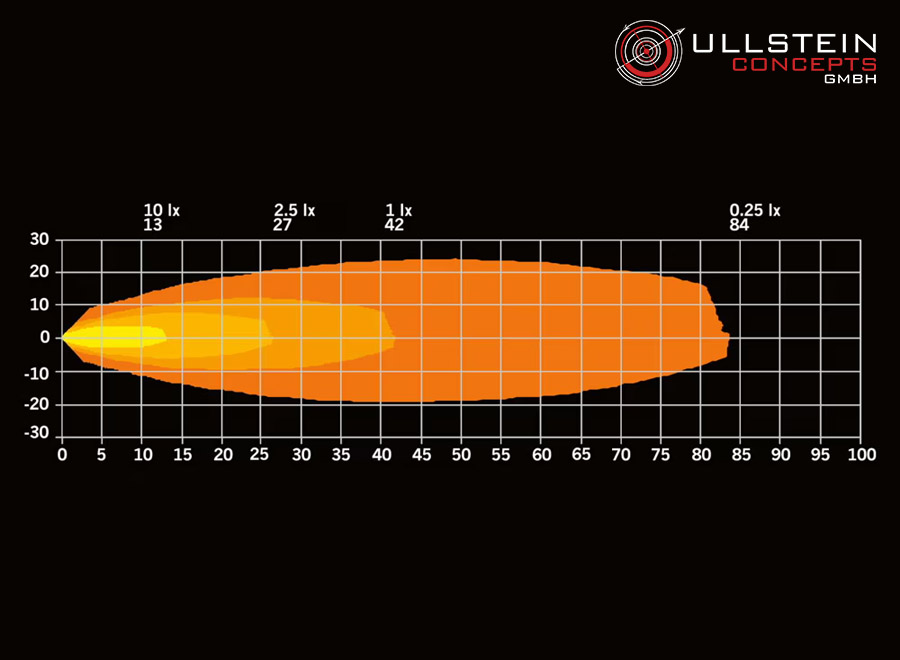

Range at 1 lux: 42m
Color temperature: 6500 K
Beam angle: 80.8° Floodlight

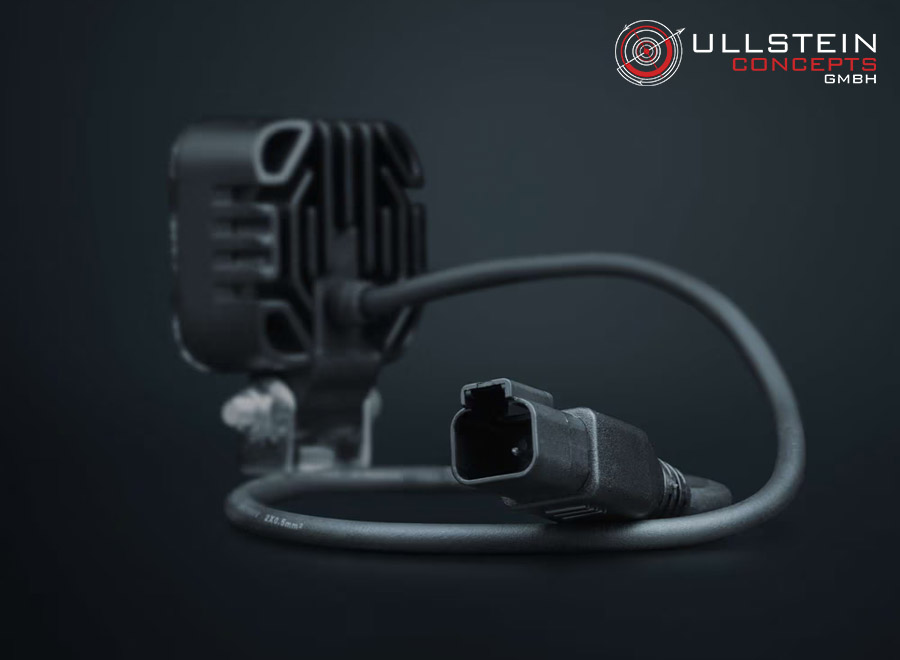

Connection: DT-2 PIN
Cable length: 500mm
Housing material: Aluminum
Lens reflector material: Polycarbonate
Bracket material: Stainless steel
Housing color: Black
Length (mm): 52.1
Depth (mm): 26.1
Height (mm): 67
Height incl. bracket (mm): 112.2
Weight: 0.18 kg
Position light: No
E-Approval: Yes
E-Mark: R23
Operating temp.: -30°C – +65°C
Protection class: IP68
EMC: ECE R10.06
Strands Logo

Manufacturer

STRANDS Fordonskomponenter AB
Address:
Hagalundsvägen
51172 Fritsla
Schweden www.STRANDS.se
International identifier if deviating from SKU
809234
