AUTOMOTIVE PRODUCTS

Strands SKYN1 PXP Force Box

Strands SKYN1 PXP Force Box

Wireless LED Controller

Product number: 208-907801
shipping
On request

Description

Available from early October 2026

Strands SKYN1 PXP Force Box 907801: Wireless LED Control for Auxiliary LED Lights

The SKYN1 PXP Force Box is the heart of the PXP system, bringing vehicle lighting and electrical accessories together into one intelligent control solution. Designed for 9–30V electrical systems, it replaces complex relay wiring with an ecosystem that manages lights and functions through the SKYN1 app and PXPForce Buttons. With four outputs and three signal inputs, the Force Box works with virtually any vehicle lighting setup.


SKYN1 app

The SKYN1 app is designed for use with the PXP Force Box and Buttons. Connect the lights you want to control to the Force Box. Open the app, add your vehicle, and connect to the Box and Buttons. In the app, connect the desired function to a button, such as position lights or work lights. This system enables you to turn any lights and any setup into a wireless one, or a unified setup with easy-to-reach, clearly labeled buttons. For a clear digital overview, you can use the SKYN1 app on a tablet in the cabin. The SKYN1 app is available for iOS and Android. The app connects via Bluetooth® wireless technology[i]


Built for scalable installations

Whether you're upgrading a single vehicle or managing a larger fleet, the PXP platform grows with your needs. Multiple Force Boxes can be installed within the same system, and each Force Box can work with several Force Buttons for convenient control from different locations.

You can also store multiple vehicles in the SKYN1 app, making it easy to switch between different installations without reconfiguring your controls. This is a very useful feature if you drive a different vehicle every day.


Reliable performance in demanding environments

The Force Box is designed for professional use with built-in protection features that help ensure dependable operation every day.

  • 9–30V compatibility

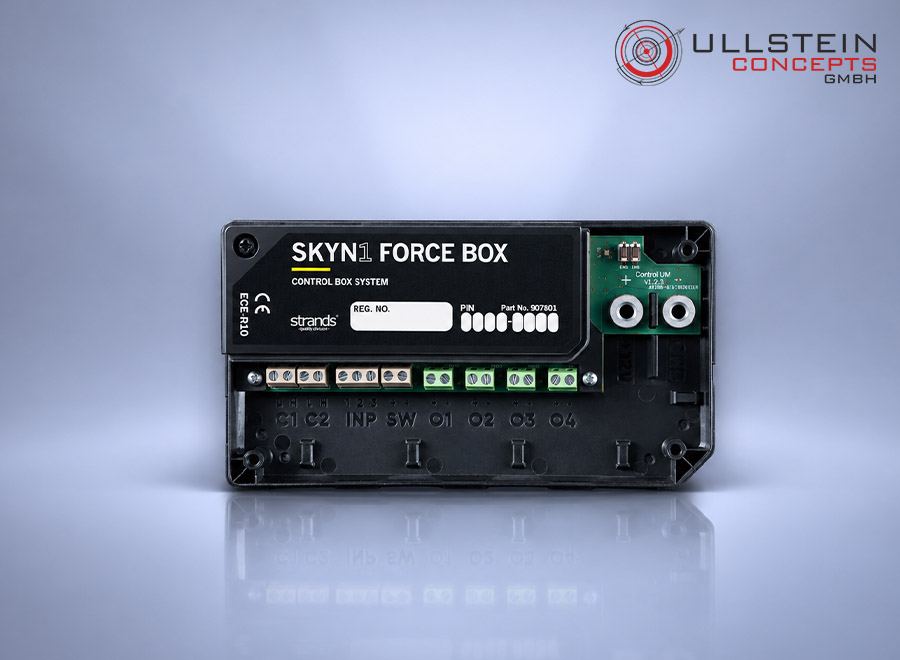

  • Four outputs
  • Three inputs
  • 60A max
  • Electronic fuses
  • Programmable voltage guard
  • Temperature monitoring
  • Automatic power-save mode

Complete control without complicated wiring

Instead of using multiple switches, relays, and separate control systems, the Force Box acts as the central hub for your installation. Connect your lights directly to the Force Box, pair it with the SKYN1 app and PXP Force Buttons, and assign each function exactly as you want.


Why choose the SKYN1 PXP Force Box?

The Force Box transforms fragmented vehicle lighting installations into one intelligent, wireless control system. It delivers advanced functionality, flexible programming, scalable expansion, and dependable protection, giving you complete control of your entire lighting setup from one unified platform.


Technical Data:​

Voltage: 9-30V DC
Consumption: 720W
Functions: Bluetooth Mesh, Strands app, relay box with 4 ports
Mounting: M6 terminal screw
Weight: 260g
Housing color / material: Black / PA 6

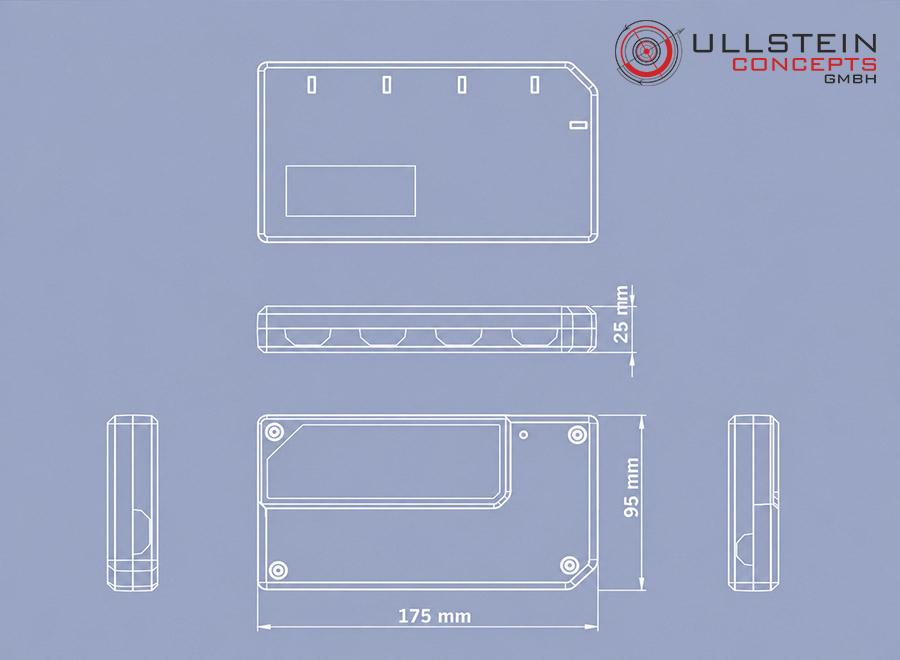

Length: 175 mm
Depth: 95 mm
Height: 25 mm
IP rating: IP20
Operating temp.: -35 - +45°C
Note Max. 15 A per output. Works with Strands mobile App.

Manufacturer

STRANDS Fordonskomponenter AB
Address:
Hagalundsvägen
51172 Fritsla
Schweden www.STRANDS.se
International identifier if deviating from SKU
907801
