Strands - Nuuk D-Line Driving Light 9"

Strands - Nuuk D-Line Driving Light 9"

2in1 high beam with E-mark and offroad mode 13400lm

Product number: 208-901021
shipping
Delivery time: 14 workdays

Description

Available from end of April.

Strands Nuuk D-Line Driving Light 9 Inch (901021): LED High-Beam Headlight with ECE R148 (R7)- R149 (R112) approval for use on public roads

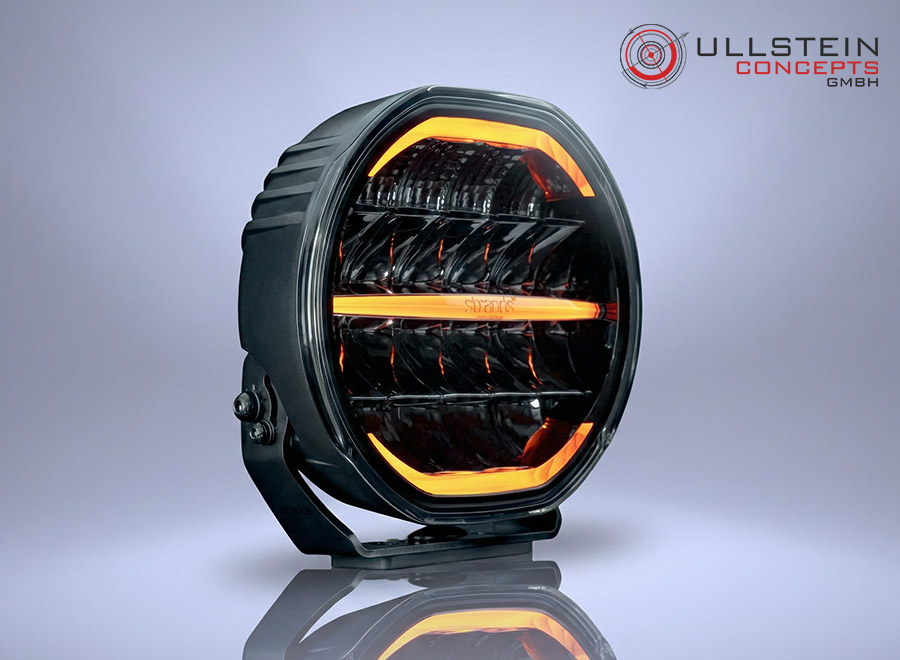

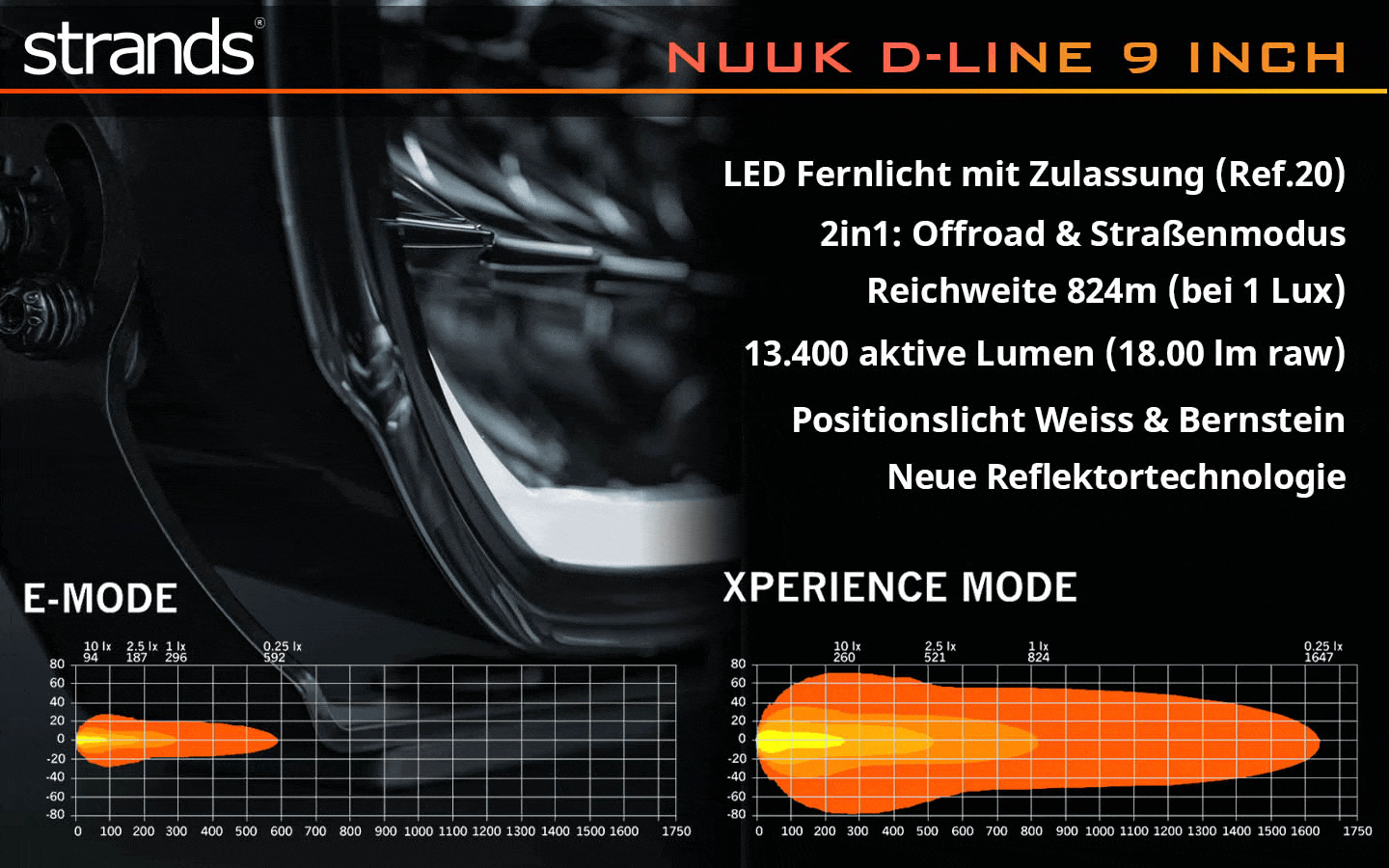

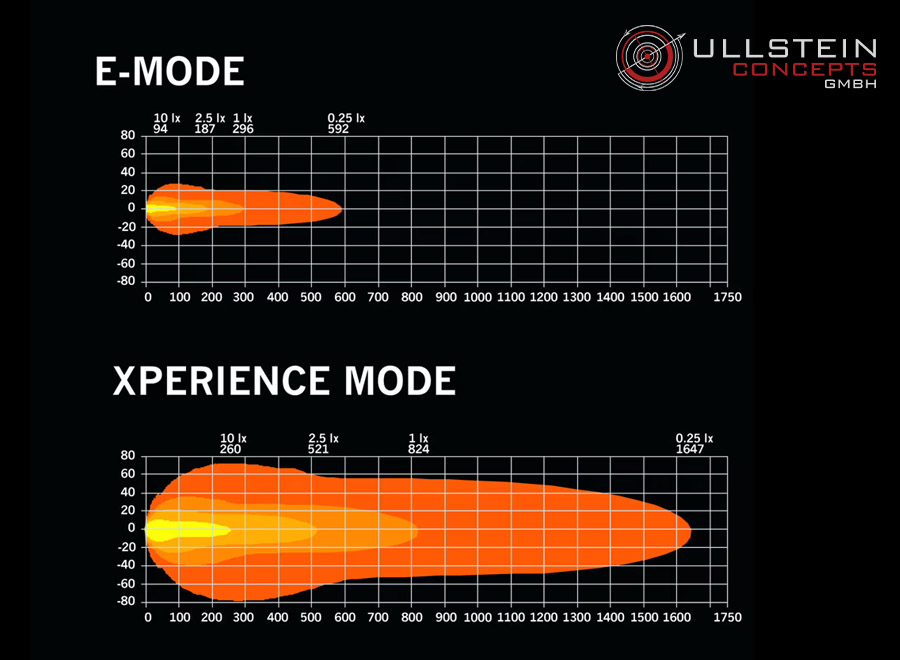

The Strands Nuuk D-Line 9-inch auxiliary headlight with Duo mode features an E-mode with an E-mark for operation as a high-beam headlight on public roads, as well as an Xperience mode for unrestricted power in off-road use.

  • 2-in-1: Off-road & E-mode
  • LED high beam with approval (Ref. 20)
  • Range 824m (at 1 lux)
  • 13,400 active lumens (18,000 lm raw)

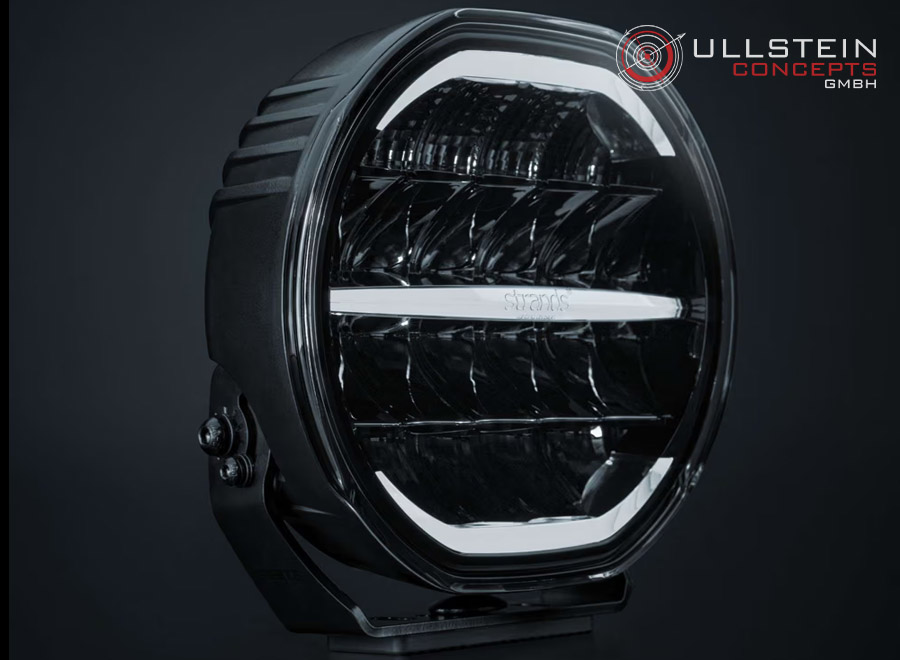

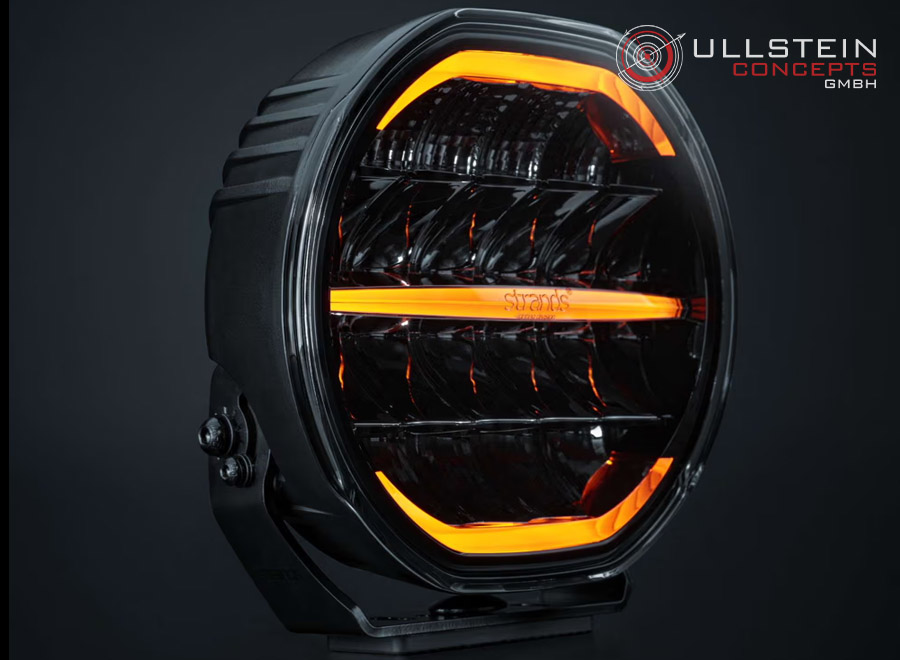

  • Position light white & amber
  • 2.5 meters cable length

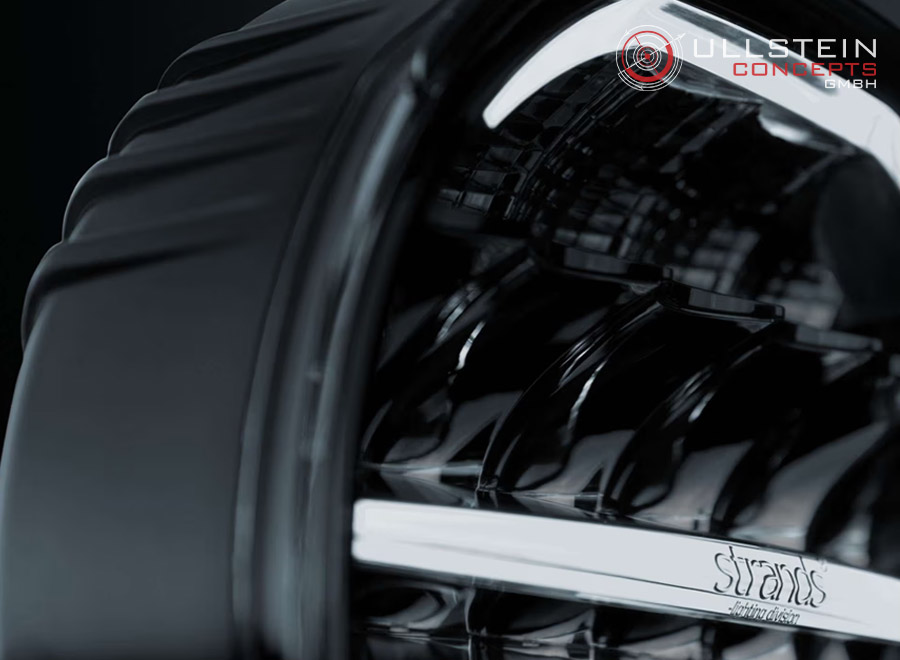

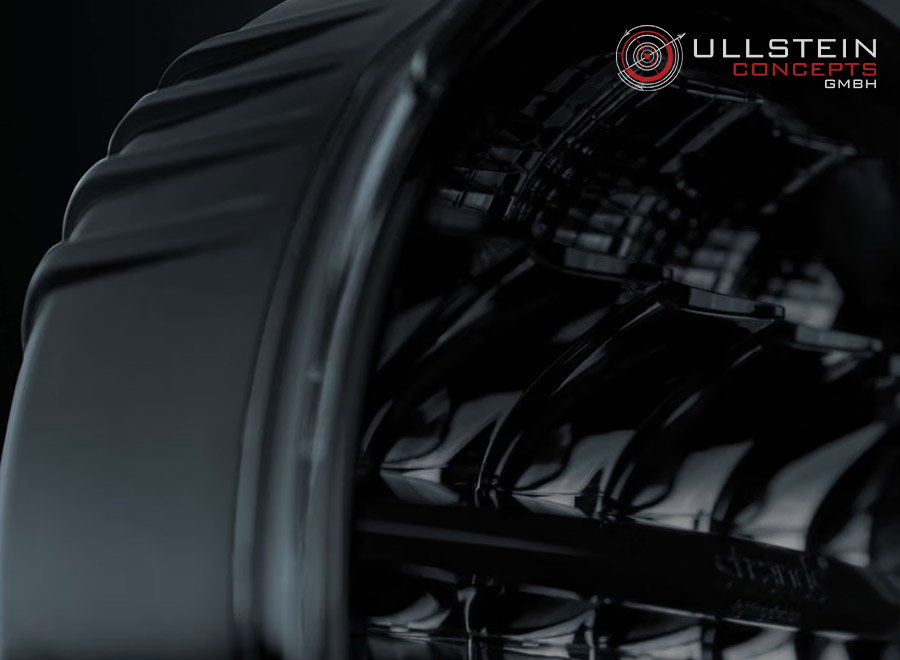

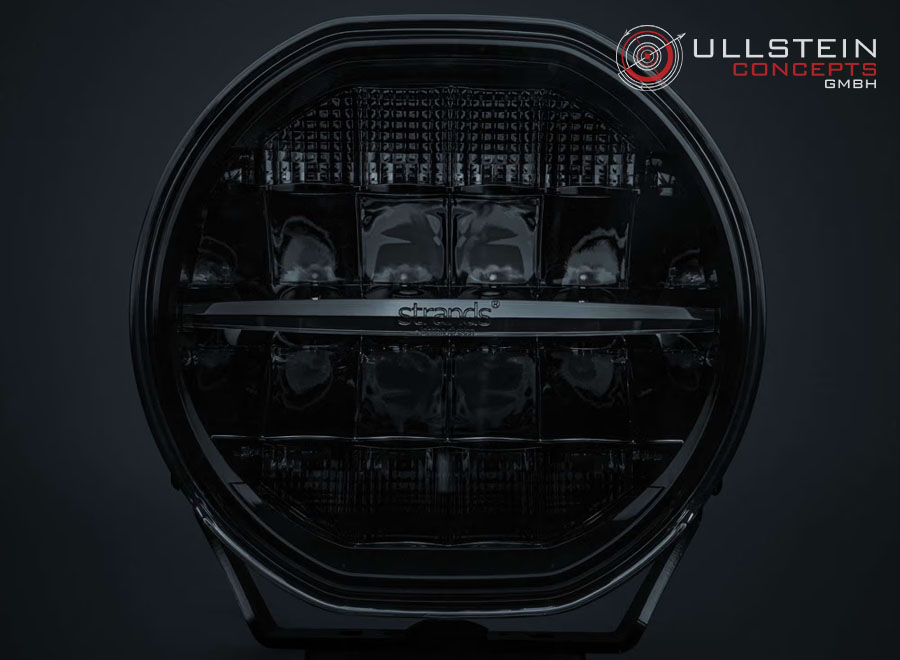

  • New reflector technology



In Xperience mode, the round 9-inch high beam generates a light output of an impressive 13,400 active (measured) lumens with a range of over 800 meters! The new reflector technology ensures that despite the high beam range, no compromises have to be made regarding the beam width and performance in the near-field area. This makes it easier to spot wildlife and other hazards at the side of the road.

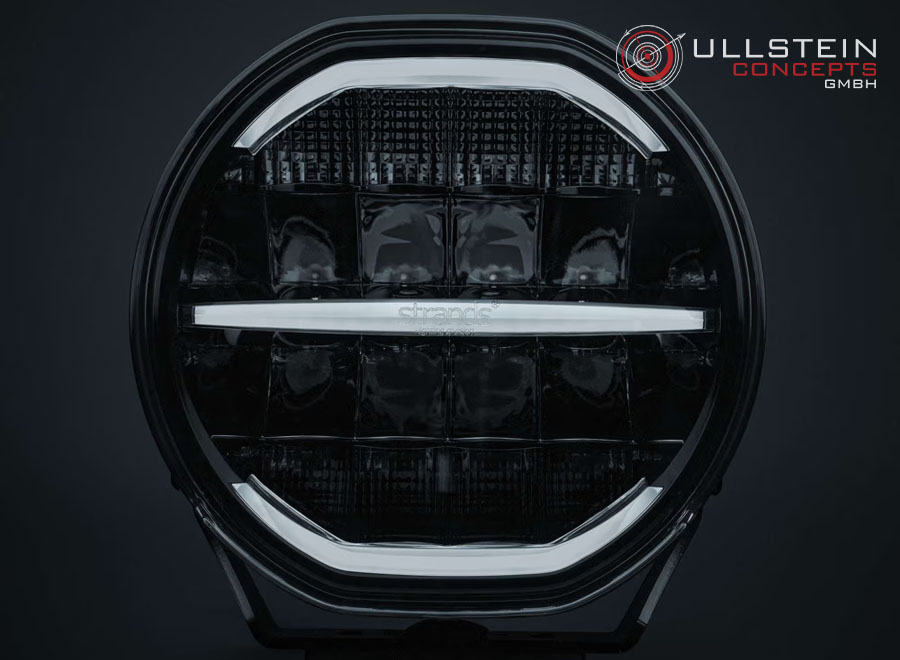

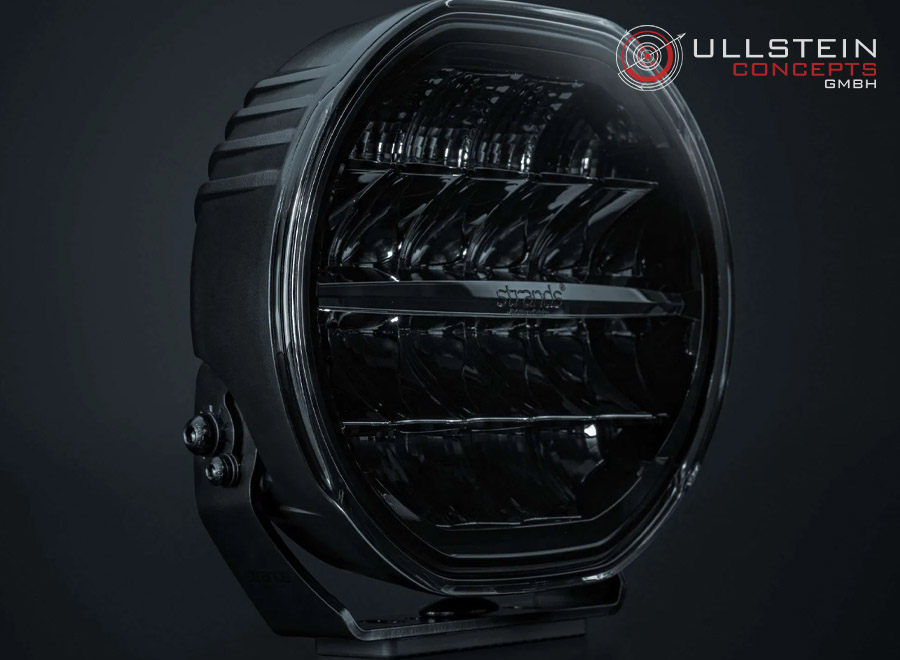

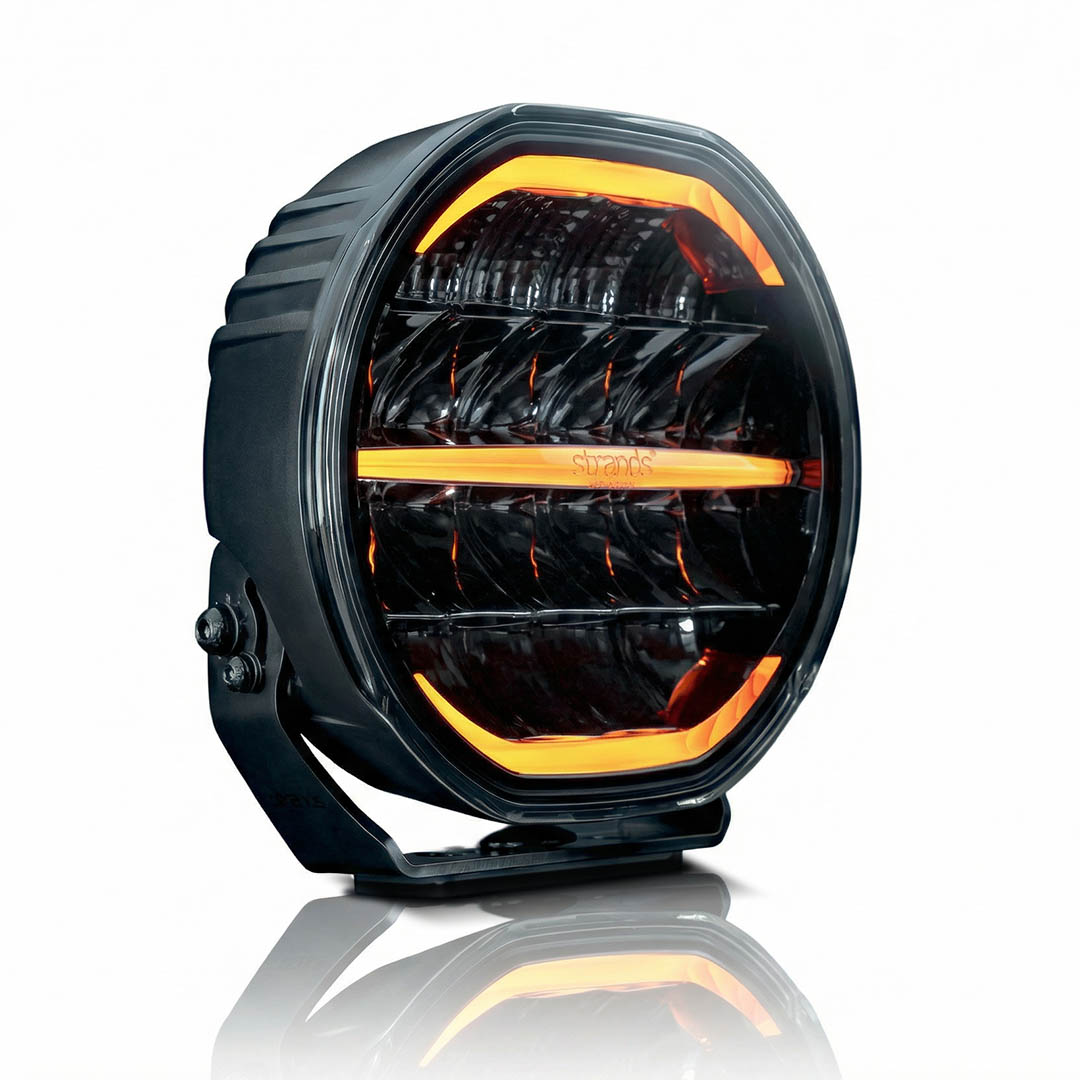

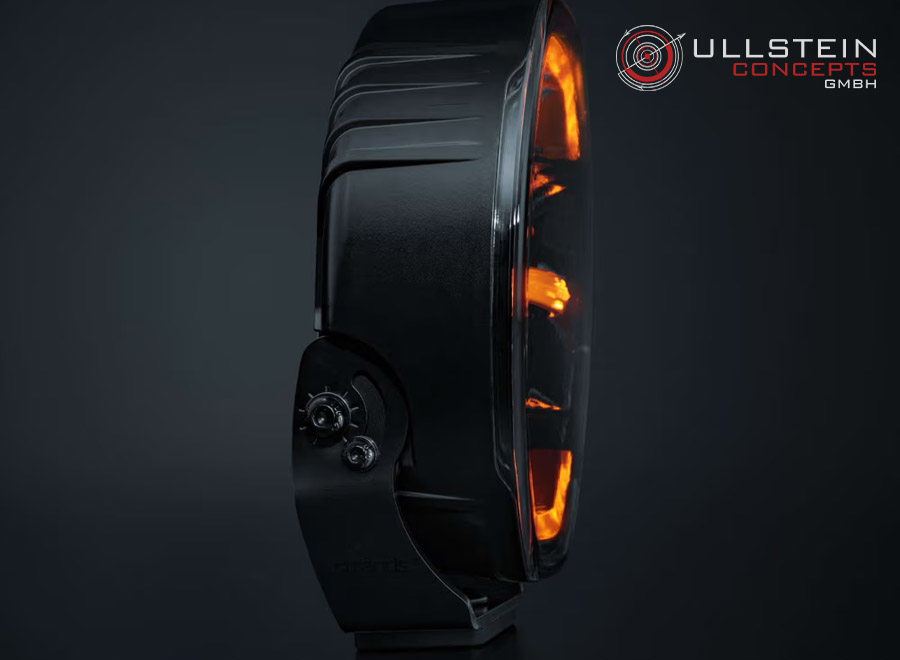

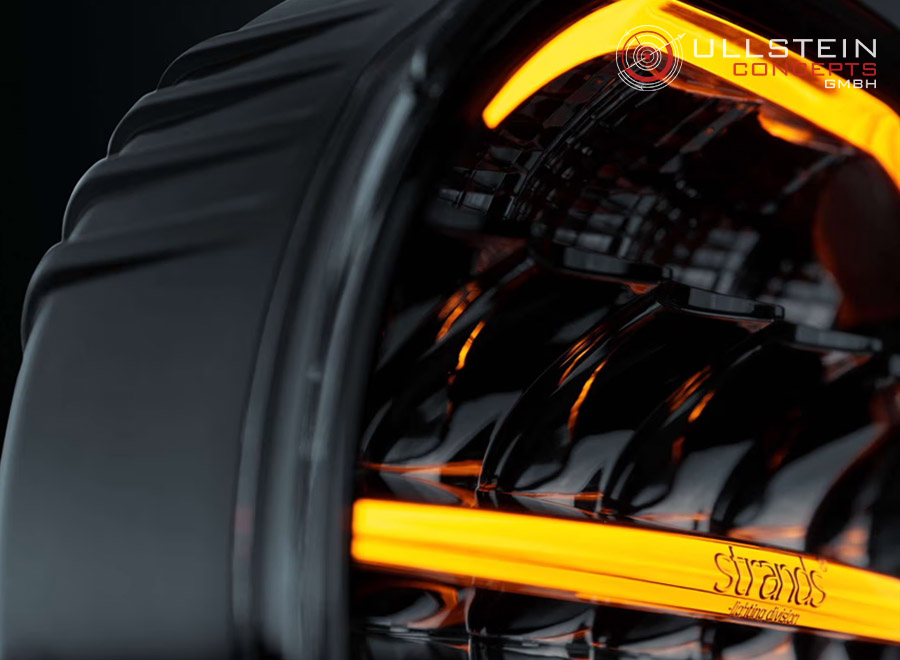

The white and amber position light is built into the reflector. The LEDs are dark and invisible when not in use, but shine with rich and vibrant colors when switched on. The reflector also creates a mirror-like effect on the position lights.

The IP69K protection class certification offers the highest protection against dirt and water. High-quality materials and coating also guarantee that the D-Line auxiliary high-beam headlight can withstand harsh weather conditions, salt, ice, dirt, and temperature fluctuations in the long run.



Please Note: In addition to the actual ECE approval, the installation rules for the specific vehicle must also be observed, which are primarily defined by ECE R48 and the German Road Traffic Licensing Regulations (StVZO). We have summarised the most important rules for you in this PDF.



Technical Details:

Voltage9-36V DC
Theoretical effect185W
ConsumptionX-mode 171W, E-mode 22W, Pos. 1W
Theoretical lumen18000 lm
Actual lumenX-mode: 13400 lm
1 Lux @X-mode: 824 m
Colour temperature5700 Kelvin
Beam angle13.6° Long-distance beam
IP-ClassIP69K
Housing colourBlack
Position lightWhite and amber

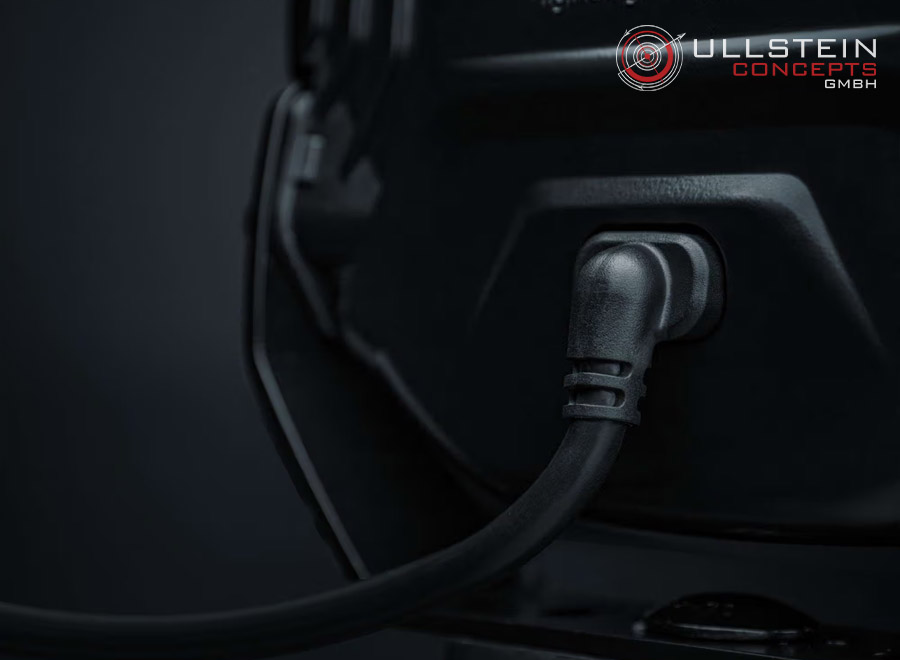

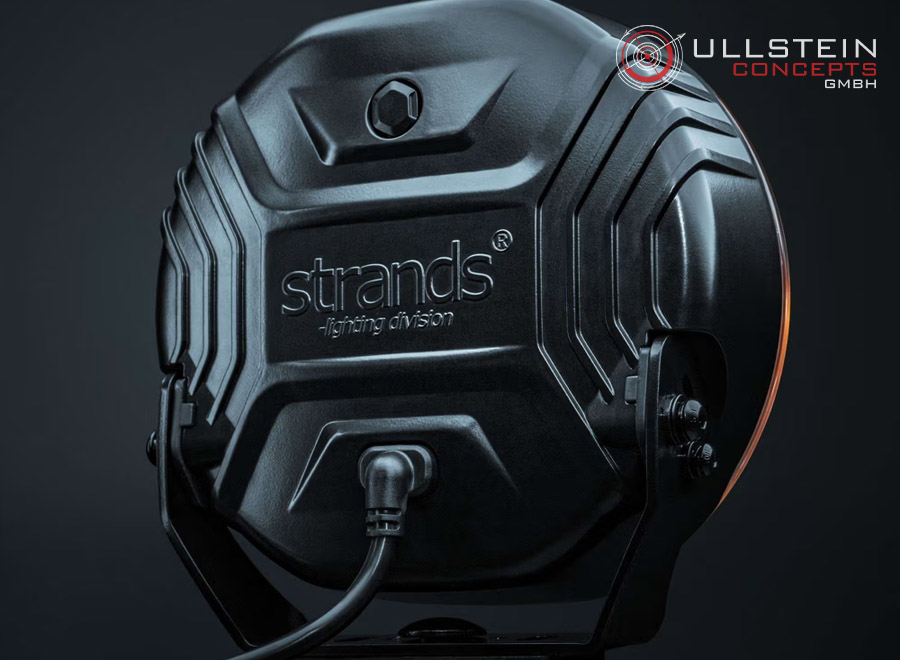

ConnectionCable
Cable length2500 mm
Housing materialAluminium
Bracket materialStainless Steel
Lens materialPolycarbonate

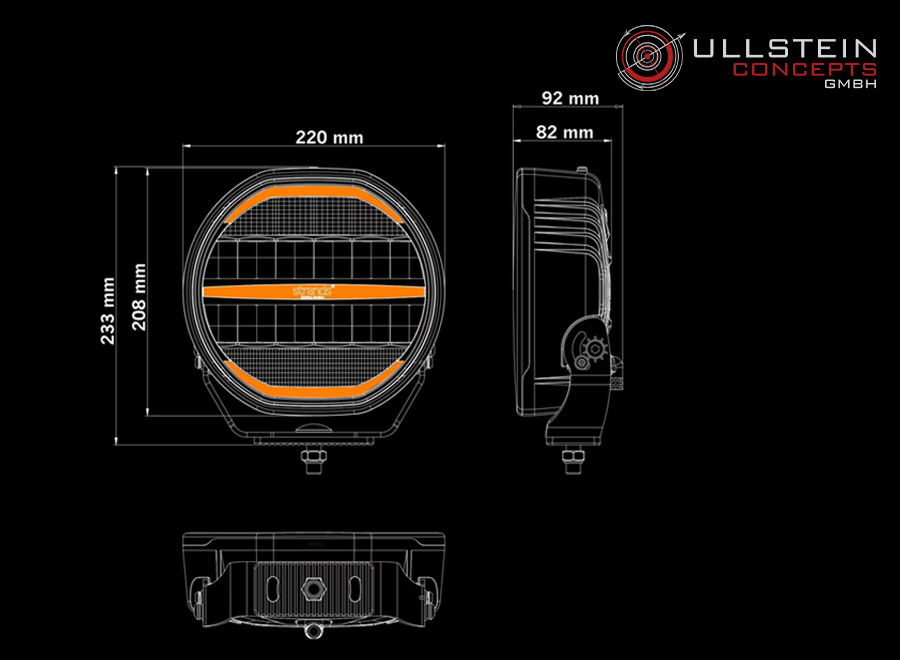

Length220 mm
Depth82 mm
Height208 mm
Height incl. Bracket233 mm
Weight2.61 kg
Operating Temperature-40°C - +60°C
E-MarkECE R148, R149
Reference Number (Ref.)20
EMC CertificateECE R10.06
Strands Logo

Manufacturer

STRANDS Fordonskomponenter AB
Address:
Hagalundsvägen
51172 Fritsla
Schweden www.STRANDS.se
International identifier if deviating from SKU
901021
